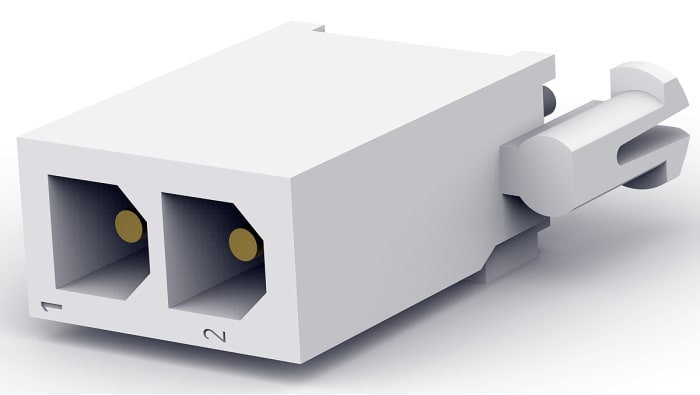

TE Connectivity Mini-Universal MATE-N-LOK Series Straight Through Hole PCB Header, 2 Contact(s), 4.14 mm Pitch, 1 Row,
Technical Document
Specifications
Brand
TE ConnectivitySeries
Mini-Universal MATE-N-LOK
Product Type
PCB Header
Pitch
4.14mm
Current
9.5A
Number of Contacts
2
Housing Material
Nylon
Number of Rows
1
Orientation
Straight
Shrouded/Unshrouded
Shrouded
Connector System
Wire-to-Board
Mount Type
Through Hole
Contact Material
Brass
Contact Plating
Tin
Minimum Operating Temperature
-55°C
Row Pitch
4.14mm
Termination Type
Solder
Contact Gender
Male
Tail Pin Length
3.69mm
Maximum Operating Temperature
105°C
Standards/Approvals
No
Voltage
600 V
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
€ 5.90
€ 1.18 Each (In a Pack of 5) (Exc. VAT)
Standard
5
€ 5.90
€ 1.18 Each (In a Pack of 5) (Exc. VAT)
Stock information temporarily unavailable.
Standard
5
| Quantity | Unit price | Per Pack |
|---|---|---|
| 5 - 35 | € 1.18 | € 5.90 |
| 40 - 95 | € 1.001 | € 5.01 |
| 100+ | € 0.896 | € 4.48 |
