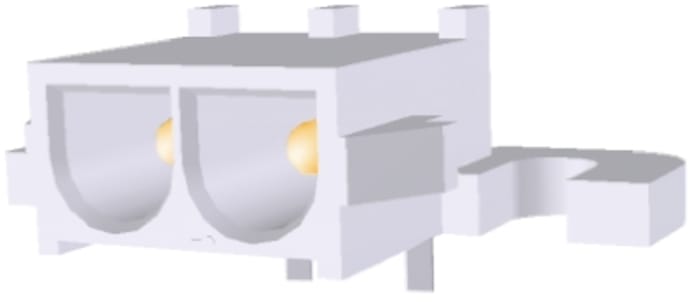

TE Connectivity Universal MATE-N-LOK Series Right Angle Through Hole PCB Header, 2 Contact(s), 6.35 mm Pitch, 1 Row,
Technical Document
Specifications
Brand
TE ConnectivityProduct Type
PCB Header
Series
Universal MATE-N-LOK
Pitch
6.35mm
Current
19A
Number of Contacts
2
Housing Material
Nylon
Number of Rows
1
Orientation
Right Angle
Shrouded/Unshrouded
Shrouded
Connector System
Wire-to-Board
Mount Type
Through Hole
Contact Plating
Tin
Contact Material
Phosphor Bronze
Minimum Operating Temperature
-40°C
Row Pitch
6.35mm
Termination Type
Solder
Contact Gender
Male
Tail Pin Length
4.06mm
Maximum Operating Temperature
105°C
Standards/Approvals
No
Product details
TE Connectivity Universal MATE-N-LOK / Universal MATE-N-LOK II Right Angle Pin & Socket Headers
A range of Universal MATE-N-LOK right angle pin & socket headers that can be used with both Universal MATE-N-LOK and Universal MATE-N-LOK II plug housings
TE Connectivity Universal MATE-N-LOK II ™ Range
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
€ 1.59
€ 1.59 Each (Exc. VAT)
Standard
1
€ 1.59
€ 1.59 Each (Exc. VAT)
Stock information temporarily unavailable.
Standard
1
| Quantity | Unit price |
|---|---|
| 1 - 19 | € 1.59 |
| 20 - 74 | € 1.43 |
| 75 - 299 | € 1.39 |
| 300 - 599 | € 1.35 |
| 600+ | € 1.32 |
