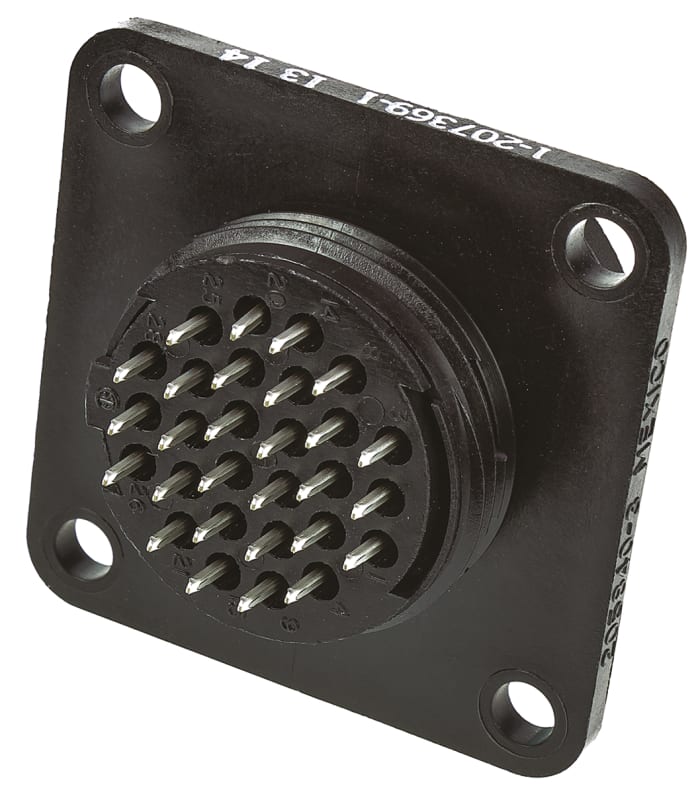

TE Connectivity Circular Connector, 28 Contacts, Panel, Standard Connector, Socket, Male, CPC Series
Technical Document
Specifications
Brand
TE ConnectivityNumber of Contacts
28
Product Type
Circular Connector
Mount Type
Panel
Connector Size
Standard
Plug/Socket
Socket
Contact Gender
Male
Orientation
Straight
Series
CPC
Voltage
250 V
Mating Type
Keyed
Shell Size
17
Minimum Operating Temperature
-55°C
Termination Type
Solder
Housing Material
Nylon
Maximum Operating Temperature
105°C
Standards/Approvals
No
Pole Format
28
Contact Plating
Gold
Distrelec Product Id
30333226
Product details
Receptacles Standard Sex, Series 2
From TE Connectivity, this Circular Plastic Connector (CPC) receptacle is available as either panel mount or cable mount and features a screw thread for secure mating attenuation with compatible CPC connectors. This Series 2 receptacle is available in 8,9,28 and 63 pole contact configurations.
