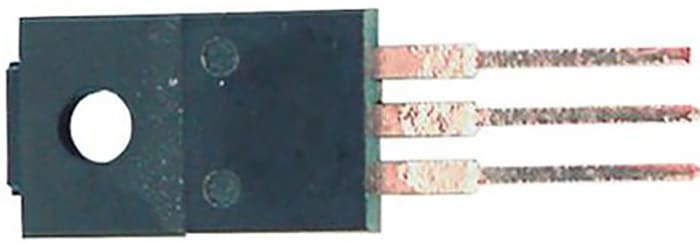

STMicroelectronics STGF6NC60HD IGBT, 6 A 600 V, 3-Pin TO-220FP, Through Hole
Technical Document
Specifications
Brand
STMicroelectronicsMaximum Continuous Collector Current
6 A
Maximum Collector Emitter Voltage
600 V
Maximum Gate Emitter Voltage
±20V
Maximum Power Dissipation
20 W
Package Type
TO-220FP
Mounting Type
Through Hole
Channel Type
N
Pin Count
3
Switching Speed
1MHz
Transistor Configuration
Single
Dimensions
10.4 x 4.6 x 16.4mm
Maximum Operating Temperature
+150 °C
Minimum Operating Temperature
-55 °C
Product details
IGBT Discretes, STMicroelectronics
IGBT Discretes & Modules, STMicroelectronics
The Insulated Gate Bipolar Transistor or IGBT is a three-terminal power semiconductor device, noted for high efficiency and fast switching. The IGBT combines the simple gate-drive characteristics of the MOSFETs with the high-current and low–saturation-voltage capability of bipolar transistors by combining an isolated gate FET for the control input, and a bipolar power transistor as a switch, in a single device.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
€ 33.63
€ 1.345 Each (Supplied in a Tube) (Exc. VAT)
Production pack (Tube)
25
€ 33.63
€ 1.345 Each (Supplied in a Tube) (Exc. VAT)
Stock information temporarily unavailable.
Production pack (Tube)
25
| Quantity | Unit price | Per Tube |
|---|---|---|
| 25 - 45 | € 1.345 | € 6.72 |
| 50 - 120 | € 1.21 | € 6.05 |
| 125 - 245 | € 1.092 | € 5.46 |
| 250+ | € 1.034 | € 5.17 |
