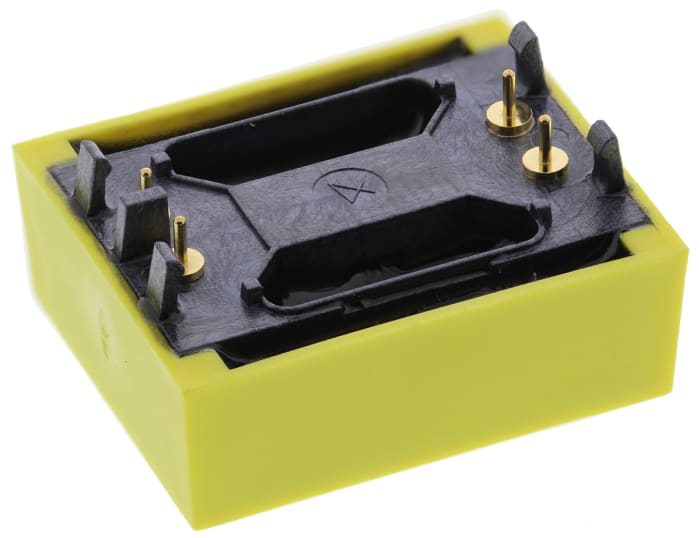

STMicroelectronics, Battery Backup IC, 2.8 V to 2.8 V Input, SNAPHAT 4-Pin
Technical Document
Specifications
Brand
STMicroelectronicsProduct Type
Battery Backup IC
Sub Type
Battery Backup IC
Mount Type
Through Hole
Package Type
SNAPHAT
Pin Count
4
Minimum Supply Voltage
2.8V
Maximum Supply Voltage
2.8V
Maximum Operating Temperature
85°C
Width
14.99 mm
Length
21.84mm
Series
M4Z28-BR00SH
Height
6.99mm
Minimum Operating Temperature
-40°C
Standards/Approvals
No
Distrelec Product Id
301-70-609
Automotive Standard
No
Product details
SNAPHAT® Lithium Coin Cell Battery with Crystal, STMicroelectronics
These Battery and Crystal Option devices are detachable lithium power sources housed in special top called SNAPHAT®. The SNAPHAT is snapped on the top of the surface-mounted IC in the Printed Circuit board. Also compatible with the non-volatile TIMEKEEPER® package by STMicroelectronics.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
€ 11.53
€ 11.53 Each (Exc. VAT)
1
€ 11.53
€ 11.53 Each (Exc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 4 | € 11.53 |
| 5 - 9 | € 10.84 |
| 10 - 24 | € 10.25 |
| 25 - 49 | € 9.68 |
| 50+ | € 9.21 |
