Schurter MCS 19 Series Illuminated Push Button Switch, Momentary, Panel, 19 mm Cutout, SPST, Green, Red LED, 48 V 48 V

Name: Schurter MCS 19 Series Illuminated Push Button Switch, Momentary, Panel, 19 mm Cutout, SPST, Green, Red LED, 48 V 48 V
Brand: Schurter
SKU: 4561789
Availability: LimitedAvailability

RS Stock No.: 456-1789Brand: SchurterManufacturers Part No.: 1241.2858Distrelec Article No.: 13507487

View all in Push Button Switches

Technical Document

Specifications

Brand

Schurter

Actuator Colour

Silver

Product Type

Push Button Switch

Switch Operation

Momentary

Illuminated

Yes

Series

MCS 19

Panel Cutout Size

19 mm

Mount Type

Panel

Contact Configuration

SPST

Terminal Type

Solder

LED Colour

Green, Red

Contact DC Voltage

48V

Contact AC Voltage

48V

Actuator Style

Button

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

60°C

Switch Contact Current

125 mA

Standards/Approvals

RoHS, EN, CE

Product details

Anti-Vandal M19 Push Button Switches - MCS 19 Series

Product description
M19 Anti-vandal Switches from Schurter are momentary push buttons. These switches offer a rugged switch that is suitable to withstand challenging environments.

A range of momentary pushbutton switches for 19mm panel holes.
Options include case and button materials, buttons with or without legends and illumination, and switch termination styles.
Single pole normally open
Silver contacts

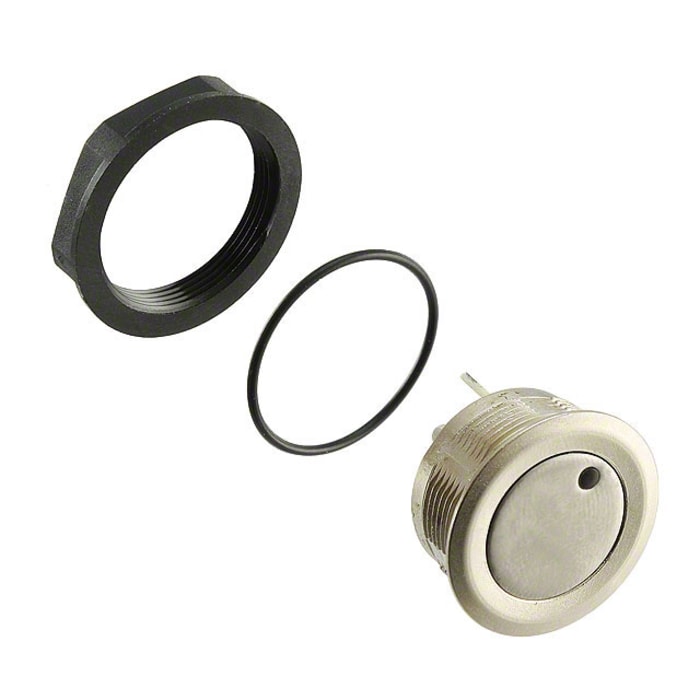

All switches supplied with nut and O-ring seal
Case colour natural
Contact Rating: 50mA / 24Vdc

Anti-Vandal M19 Push Button Switches - MCS 19 Series

Product description
M19 Anti-vandal Switches from Schurter are momentary push buttons. These switches offer a rugged switch that is suitable to withstand challenging environments.

Quantity	Unit price
1 - 1	€ 15.19
2 - 4	€ 13.76
5+	€ 13.31
