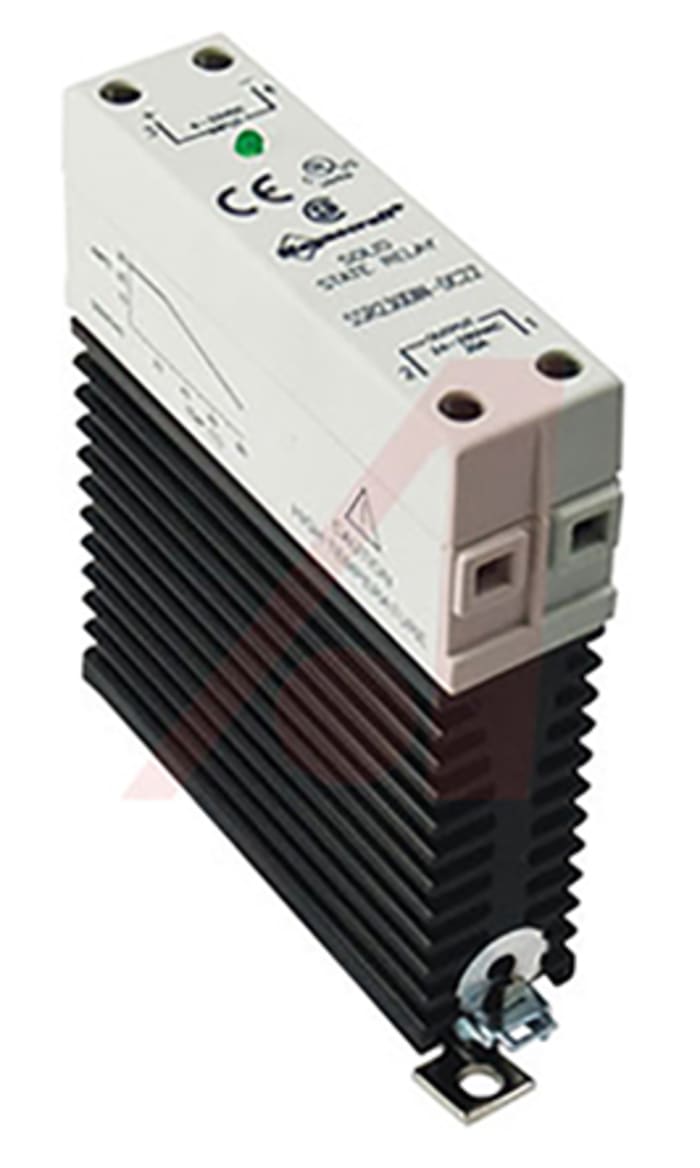

Schneider Electric Solid State Relay, 10 A Load, Panel Mount, 280 V ac Load, 32V dc Control
Technical Document
Specifications
Brand
Schneider ElectricProduct Type
Solid State Relay
Maximum Load Current
10A
Mount Type
Panel
Maximum Load Voltage
280V ac
Minimum Load Voltage
24V ac
Minimum Control Voltage
3V dc
Maximum Control Voltage
32V dc
Terminal Type
Screw
IP Rating
IP20
Contact Configuration
SPST
Switching Function
DC Switching
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
80°C
Length
57.2mm
Standards/Approvals
RoHS, REACH
Width
26.2mm
Height
35.9mm
Off State Leakage Current
10mA
Output Type
MOSFET
Product details
6000 series
The 6000 series solid state relays offer an energy-efficient, current switching alternative to standard electromechanical relays. Advantages include longer life cycles, less energy consumption, and reduced maintenance costs.
Solid state circuitry
Optically coupled circuit
Internal snubber
Fingersafe terminals
Zero Voltage Relays
