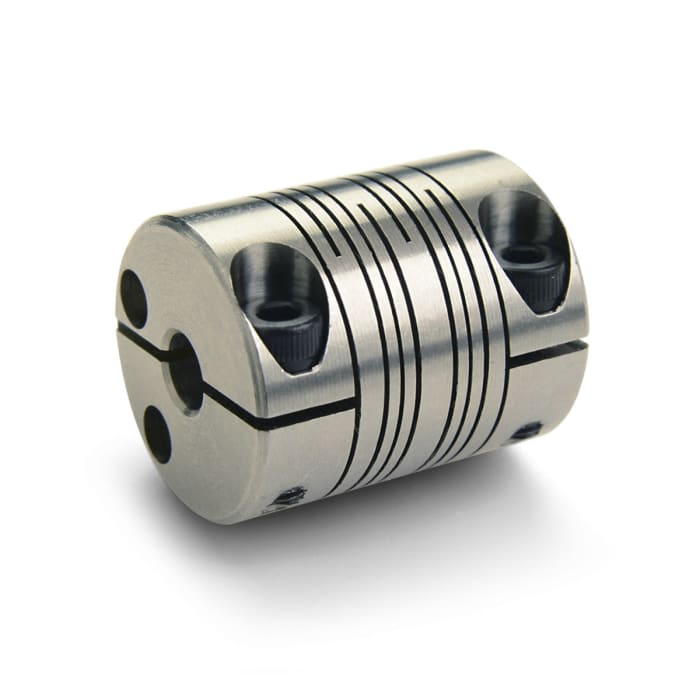

Ruland, 20 mm OD 4 mm, 20 mm Length 4 mm Coupler
Technical Document
Specifications
Brand
RulandProduct Type
Coupler
Outside Diameter
20 mm
Length
20mm
Maximum Speed
6000rpm
Torque Rating
1.3Nm
Misalignment - Angular
3°
Number of Beams
4
Style
Screw
Misalignment - Parallel
0.2mm
Misalignment - Axial
0.12mm
Material
Stainless Steel
Minimum Operating Temperature
-40°C
Bore Size B
4mm
Bore Size A
4mm
Series
MW
Maximum Operating Temperature
176°C
Standards/Approvals
RoHS3, REACH, DIN 912 12.9
Screw Size
M3
Country of Origin
United States
Product details
Stainless Steel Flexible Shaft Couplings
Designed to perform where higher speeds, greater misalignment, and limited lubrication would exceed the capabilities of other couplings. Each coupling is manufactured as one piece, thereby eliminating mechanical joints and possible failure points.Two fixing styles available:,Typical applications include encoders, stepper motors, robotics, measuring instruments, servo systems, pumps, valves, fans etc., (i) Set Screw style is secured using one grub-screw per shaft (staggered at 120°) , (ii) Clamp style fixing uses one socket head cap screw per shaft.
Constant velocity couplings with high torque capacity and zero backlash
Torsionally rigid one-piece construction
Not temperature sensitive
High or low speed operation and reversible
No lubrication required
Up to 3° of axial misalignment allowable
