RS PRO UHF Series Panel Mount Female UHF, 50 Ω, Straight Body Solder
Technical Document
Specifications
Brand
RS ProCoaxial Connector Type
UHF
Product Type
Coaxial Connector
Mount Type
Panel Mount
Impedance
50Ω
Connector Gender
Female
Orientation
Straight
Cable Type
RG58/U
Size
Standard
Bulkhead
Yes
Operating Frequency
300MHz
Minimum Operating Temperature
-55°C
Body Plating
Silver
Maximum Operating Temperature
85°C
Termination Type
Solder
Polarity
Normal
Contact Gender
Female
Series
UHF
Standards/Approvals
No
Contact Material
Beryllium Copper Alloy
Contact Plating
Silver
Country of Origin
Taiwan, Province Of China
Product details

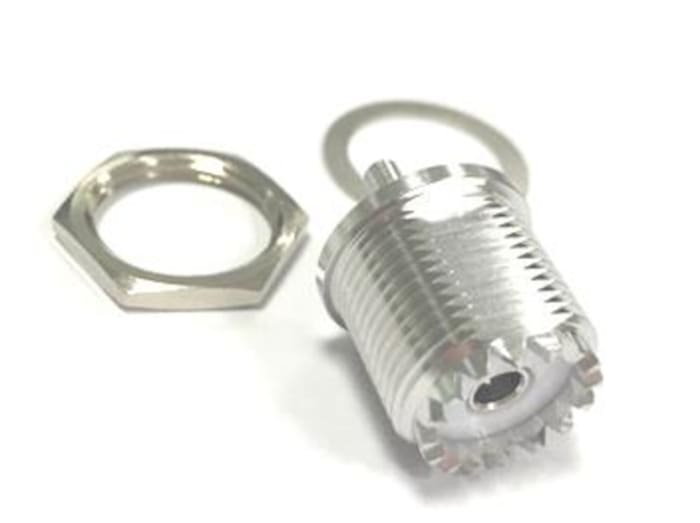

Bulkhead Socket (mtg hole 13mm dia)
RS Standard
A series of connectors to MIL specifications with high quality materials and PTFE insulation. Non-constant impedance design, suitable for use up to 500V peak and 200MHz, or up to 500MHz with diminished performance.
Stock information temporarily unavailable.
€ 10.00
€ 10.00 Each (Exc. VAT)
1
€ 10.00
€ 10.00 Each (Exc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 14 | € 10.00 |
| 15 - 49 | € 9.44 |
| 50 - 99 | € 8.87 |
| 100 - 249 | € 8.41 |
| 250+ | € 7.95 |
