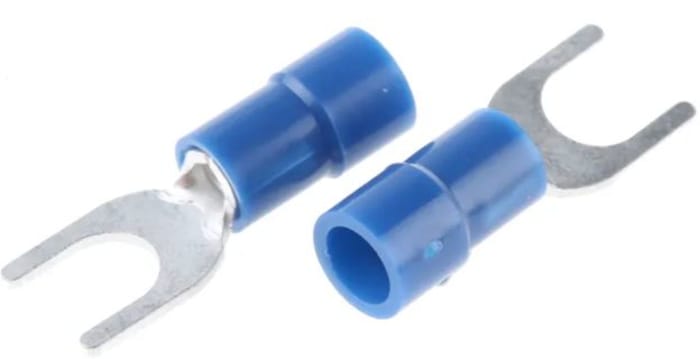

RS PRO, SVY Insulated Crimp Spade Connector, 16 AWG to 14 AWG, 5.3 mm Stud Size Vinyl, Blue
Technical Document
Specifications
Brand
RS ProProduct Type
Crimp Spade Connector
Series
SVY
Insulation
Insulated
Width
7.9 mm
Insulation Material
Vinyl
Minimum Wire Size AWG
16 AWG
Maximum Wire Size AWG
14 AWG
Overall Length
22mm
Stud Size
5.3 mm
Hooked
No
Colour
Blue
Contact Plating
Tin
Contact Material
Copper
Standards/Approvals
No
Thickness
0.8mm
Country of Origin
Taiwan, Province Of China
Product details
RS PRO Insulated Spade Connectors
These insulated crimp-spade terminals are your go-to solution for effortless wire termination without the hassle of soldering. Designed to connect wires to studs, bus bars, and more, they provide unmatched strength and durability with their copper construction and tin plating. But that's not all - these connectors are also insulated with a non-conductive, corrosion-resistant nylon material for ultimate safety and longevity.
Features and Benefits
- Insulated fork terminals
- Copper with a tin plating
- Colour coded to correspond with wire size
- Strength and durability
- All models are highly reliable and excellent quality
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
€ 9.00
€ 0.09 Each (In a Pack of 100) (Exc. VAT)
100
€ 9.00
€ 0.09 Each (In a Pack of 100) (Exc. VAT)
Stock information temporarily unavailable.
100
| Quantity | Unit price | Per Pack |
|---|---|---|
| 100 - 400 | € 0.09 | € 9.00 |
| 500 - 2400 | € 0.088 | € 8.77 |
| 2500+ | € 0.085 | € 8.54 |
