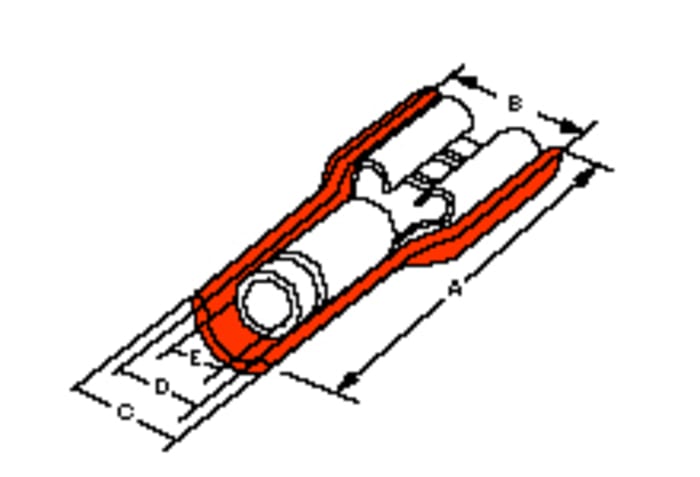

RS PRO RS PRO Red Insulated Female Spade Connector, Crimp, 0.8 x 6.35 mm Tab Size 22 AWG to 16 AWG
Technical Document
Specifications
Brand
RS ProProduct Type
Spade Connector
Termination Type
Crimp
Gender
Female
Tab Width
6.35mm
Tab Thickness
0.8mm
Tab Size
0.8 x 6.35 mm
Insulation
Insulated
Maximum Wire Size AWG
16 AWG
Minimum Wire Size AWG
22 AWG
Colour
Red
Contact Material
Brass
Contact Plating
Tin
Orientation
Straight
Insulation Material
Nylon
Standards/Approvals
No
Overall Length
22.5mm
Series
RS PRO
Country of Origin
Taiwan, Province Of China
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
€ 11.32
€ 0.113 Each (In a Bag of 100) (Exc. VAT)
100
€ 11.32
€ 0.113 Each (In a Bag of 100) (Exc. VAT)
Stock information temporarily unavailable.
100
| Quantity | Unit price | Per Bag |
|---|---|---|
| 100 - 900 | € 0.113 | € 11.32 |
| 1000 - 1900 | € 0.104 | € 10.40 |
| 2000 - 4900 | € 0.095 | € 9.47 |
| 5000 - 9900 | € 0.088 | € 8.78 |
| 10000+ | € 0.079 | € 7.86 |
