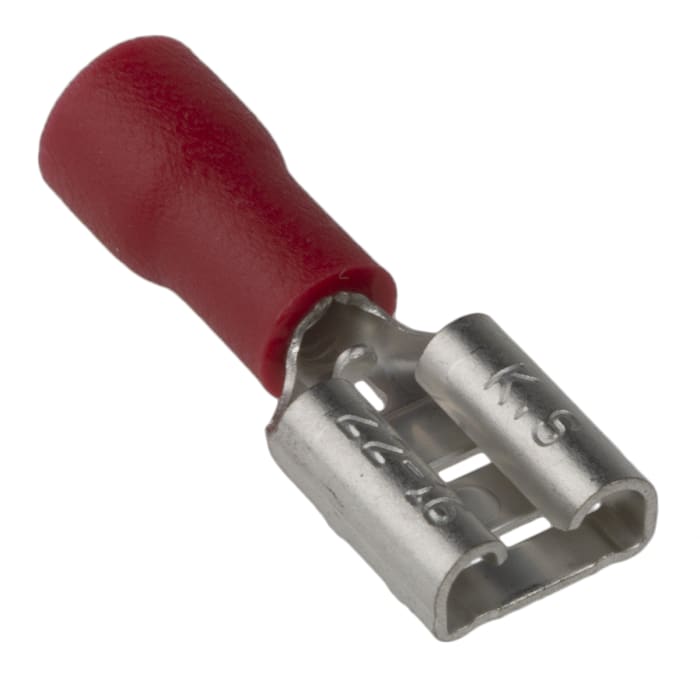

RS PRO Red Insulated Female Spade Connector, Receptacle, 0.8 x 6.35mm Tab Size, 0.5mm² to 1.5mm²
Technical Document
Specifications
Brand
RS ProType
Receptacle
Spade Connector Type
Receptacle
Gender
Female
Minimum Wire Size mm²
0.5mm²
Maximum Wire Size mm²
1.5mm²
Tab Thickness
0.8mm
Tab Size
0.8 x 6.35mm
Tab Width
6.35mm
Insulation
Insulated
Minimum Wire Size AWG
22AWG
Maximum Wire Size AWG
16AWG
Colour
Red
Termination Method
Crimp
Contact Material
Brass
Contact Plating
Tin
Wire Size
0.5 → 1.5 mm², 22 → 16 AWG
Orientation
Straight
Insulation Material
Nylon
Overall Length
21.5mm
Shrouded/Unshrouded
Unshrouded
Country of Origin
Taiwan, Province Of China
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
€ 6.87
€ 0.069 Each (In a Bag of 100) (Exc. VAT)
100
€ 6.87
€ 0.069 Each (In a Bag of 100) (Exc. VAT)
Stock information temporarily unavailable.
100
| Quantity | Unit price | Per Bag |
|---|---|---|
| 100 - 900 | € 0.069 | € 6.88 |
| 1000 - 1900 | € 0.063 | € 6.30 |
| 2000 - 4900 | € 0.057 | € 5.73 |
| 5000 - 9900 | € 0.053 | € 5.27 |
| 10000+ | € 0.048 | € 4.81 |
