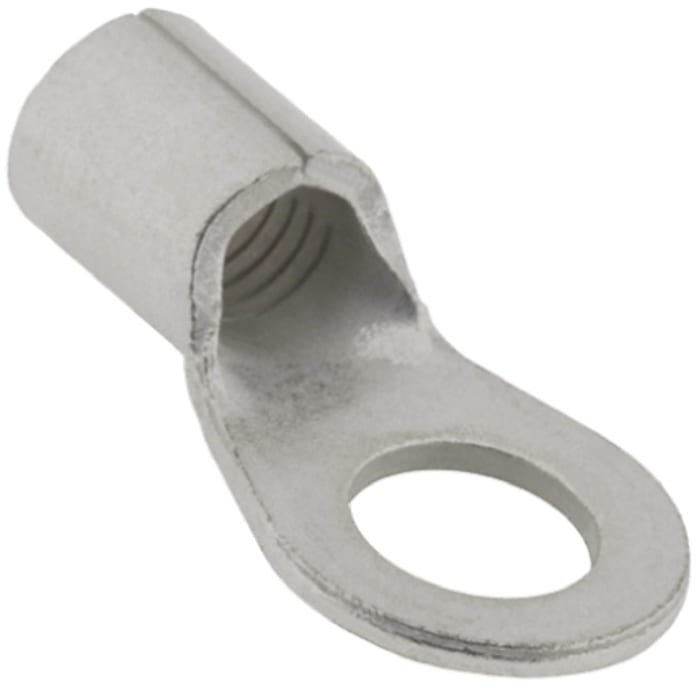

RS PRO, E245391 Uninsulated Ring Terminal, 10.5 mm Stud Size 4 AWG 4 AWG Wire Size, Grey
Technical Document
Specifications
Brand
RS ProProduct Type
Ring Terminal
Series
E245391
Insulation
Uninsulated
Outer Ring Diameter
16.5mm
Inner Ring Diameter
10.5mm
Maximum Wire Size AWG
4 AWG
Minimum Wire Size AWG
4 AWG
Overall Length
33.5mm
Stud Size
10.5 mm
Colour
Grey
Contact Material
Copper
Contact Plating
Tin
Thickness
1.7mm
Standards/Approvals
No
Maximum Operating Temperature
150°C
Maximum Wire Size mm²
22mm²
Minimum Wire Size mm²
22mm²
Minimum Operating Temperature
-40°C
Country of Origin
Taiwan, Province Of China
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
€ 4.49
€ 0.899 Each (In a Bag of 5) (Exc. VAT)
5
€ 4.49
€ 0.899 Each (In a Bag of 5) (Exc. VAT)
Stock information temporarily unavailable.
5
| Quantity | Unit price | Per Bag |
|---|---|---|
| 5 - 45 | € 0.899 | € 4.49 |
| 50 - 95 | € 0.823 | € 4.12 |
| 100 - 245 | € 0.75 | € 3.75 |
| 250 - 495 | € 0.689 | € 3.44 |
| 500+ | € 0.632 | € 3.16 |
