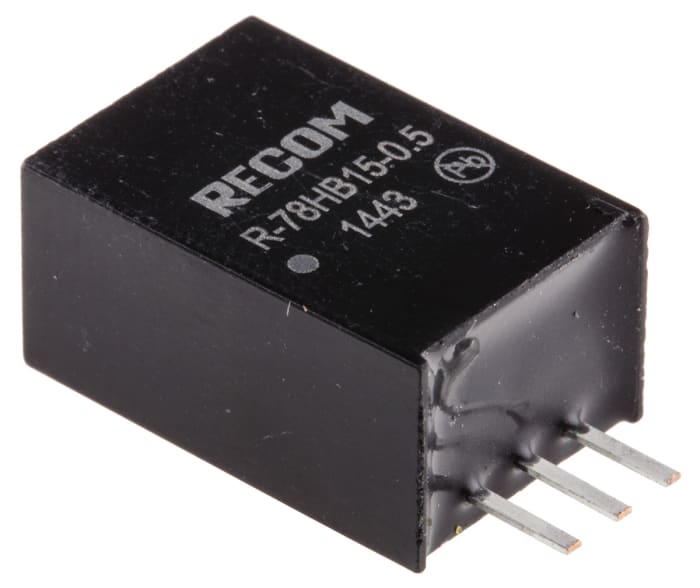

Recom Switching Regulator, Through Hole, 15V dc Output Voltage, 20 → 72V dc Input Voltage, 500mA Output Current,
Technical Document
Specifications
Brand
RecomOutput Voltage
15V dc
Output Current
500mA
Input Voltage
20 → 72V dc
Mounting Type
Through Hole
Number of Outputs
1
Package
SIP 3
Efficiency
91% @ 72 V, 95% @ 20 V
Ripple And Noise
60mV Pk-Pk
Minimum Temperature
-40°C
Maximum Temperature
+85°C
Line Regulation
1%
Width
8.5mm
Depth
17.5mm
Weight
4g
MTBF
1242 x 10³ (+71 °C) h, 7395 x 10³ (+25 °C) h
Load Regulation
0.6%
Length
11.5mm
Country of Origin
Taiwan, Province Of China
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
Price on asking
Each (In a Pack of 42) (Exc. VAT)
42
Price on asking
Each (In a Pack of 42) (Exc. VAT)
Stock information temporarily unavailable.
42
