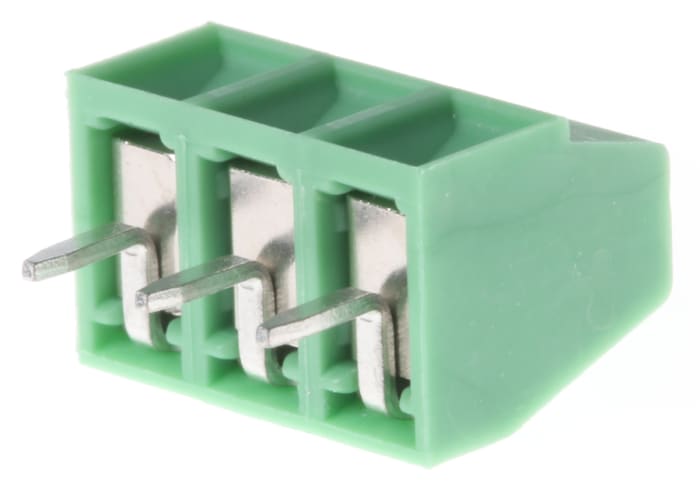

Phoenix Contact MKDS 1/3-3.81 HT BK Series PCB Terminal Block, 3.81mm Pitch, Through Hole Mount, Solder Termination
Technical Document
Specifications
Brand
Phoenix ContactPitch
3.81mm
Mounting Type
Through Hole
Termination Method
Solder
Current Rating
12A
Colour
Black
Voltage Rating
300 V
Series
MKDS 1/3-3.81 HT BK
Material
Nylon
Country of Origin
Germany
Product details
Phoenix Contact COMBICON MKDS 3.81mm High Temperature PCB Terminal Block
COMBICON MKD S PCB terminal blocks are reflow solder tolerable and enable a greater proportion of a PCB to be populated and reflow soldered in one operation. Before being used in reflow oven, it is recommended that these components are heat treated at +125°C for 48 hrs prior to use.
Features and Benefits
• Rated at 200 V / 12 A
• Removes the necessity for costly subsequent soldering operations
• The through hole fixing offers high mechanical stability
• For wire size range 26-16 AWG
• Maximum flexible wire csa 1.0 mm², solid wire 1.5 mm²
Phoenix Contact COMBICON 3.81mm PCB Terminal Blocks
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
€ 8.88
€ 1.775 Each (In a Pack of 5) (Exc. VAT)
5
€ 8.88
€ 1.775 Each (In a Pack of 5) (Exc. VAT)
Stock information temporarily unavailable.
5
Stock information temporarily unavailable.
| Quantity | Unit price | Per Pack |
|---|---|---|
| 5 - 120 | € 1.775 | € 8.88 |
| 125 - 370 | € 1.50 | € 7.50 |
| 375 - 995 | € 1.38 | € 6.90 |
| 1000 - 1995 | € 1.234 | € 6.17 |
| 2000+ | € 1.175 | € 5.88 |
