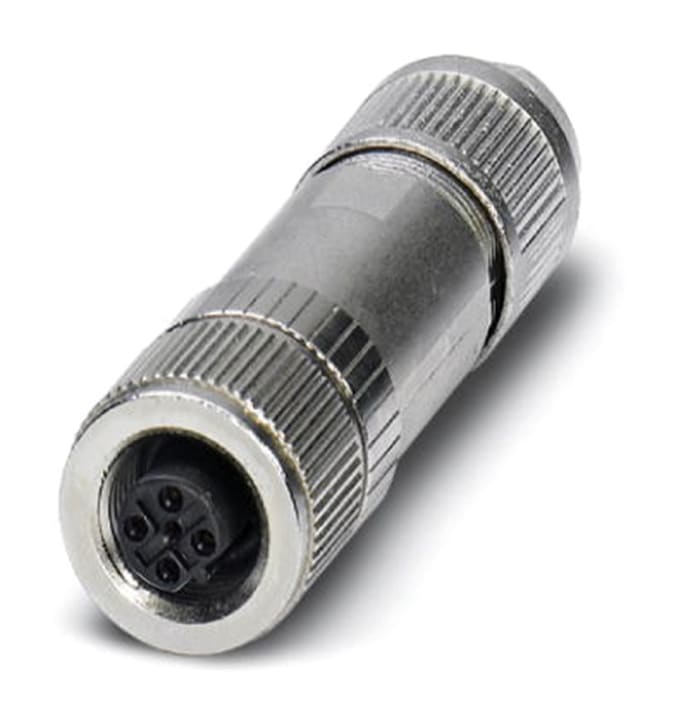

Phoenix Contact Circular Connector, 3 Contacts, Cable, M12 Connector, Plug, Female, IP65, IP67, SACC Series

RS Stock No.: 154-8151Brand: Phoenix ContactManufacturers Part No.: 1424696
brand-logo
View all in Industrial Circular Connectors

Technical Document

Specifications

Brand

Phoenix Contact

Number of Contacts

3

Product Type

Circular Connector

Mount Type

Cable

Connector Size

M12

Current

4A

Plug/Socket

Plug

Contact Gender

Female

IP Rating

IP65, IP67

Series

SACC

Orientation

Straight

Coding

B

Voltage

48.0 V, 60.0 V

Mating Type

B Coded

Shell Size

13

Minimum Operating Temperature

-40°C

Termination Type

Push-in

Maximum Operating Temperature

85°C

Housing Material

Zinc

Pole Format

3

Standards/Approvals

No

Contact Plating

Nickel over Gold

Contact Material

Copper

Country of Origin

Germany
