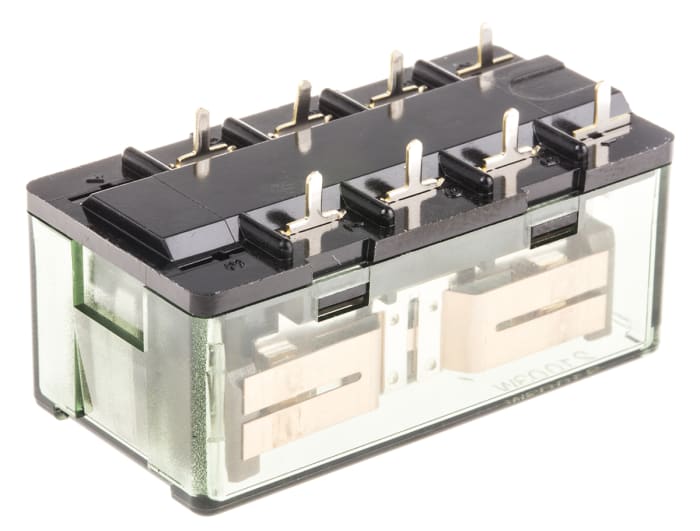

Panasonic DPDT Non-Latching Relay PCB Mount, 24V dc Coil, 15 A
Technical Document
Specifications
Brand
PanasonicCoil Voltage
24V dc
Contact Configuration
DPDT
Mounting Type
PCB Mount
Switching Current
15 A
Terminal Type
Through Hole
Coil Resistance
1.92 kΩ
Application
Power
Length
51mm
Depth
25.6mm
Height
22mm
Dimensions
51 x 25.6 x 22mm
Minimum Operating Temperature
-50°C
Coil Power
300mW
Maximum Switching Power DC
300 W
Operating Temperature Range
-50 → +60°C
Life
50000000 (Electrical) cycles
Maximum Switching Power AC
3.75 kVA
Contact Material
Silver Alloy
Maximum Operating Temperature
+60°C
Isolation Coil To Contact
3kV rms
Country of Origin
Japan
Product details
SP Series Relay
From Panasonic, these SP Series PCB mount power relays are highly sensitive, highly reliable and have a long life. As well as being compact, the SP series PCB power relays also offer strong resistance to vibration and shock.
Features and Benefits:
• High sensitivity power relay
• Nominal operating power of 300mW and minimum operating power of 150mW
• High vibration/shock resistance
• Dimensions, DPDT H22 x W50 x D25.6 mm / 4PDT H22 x W50 x D36.8 mm
Approvals
UL, CSA, TUV
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
