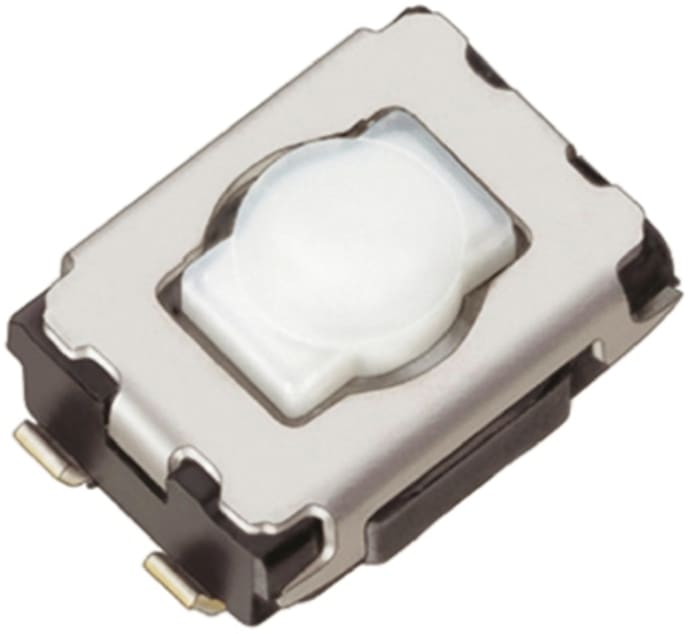

Panasonic Natural Push Plate Tactile Switch, SPST 20 mA 2.1mm
Technical Document
Specifications
Brand
PanasonicContact Configuration
SPST
Terminal Type
Surface Mount
Switch Operation
Momentary
Actuator Length
2.1mm
Actuator Colour
Natural
Actuator Type
Push Plate
Length
4.7mm
Width
3.5mm
Dimensions
4.7 x 3.5mm
Contact Current Rating
20 mA
Height
2.1mm
Operating Force
3.5 N
Minimum Operating Temperature
-40°C
Operating Temperature Range
-40 → +85°C
Mechanical Life
200000Cycles
Maximum Operating Temperature
+85°C
Country of Origin
Japan
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
€ 3.74
€ 0.748 Each (In a Pack of 5) (Exc. VAT)
Standard
5
€ 3.74
€ 0.748 Each (In a Pack of 5) (Exc. VAT)
Stock information temporarily unavailable.
Standard
5
| Quantity | Unit price | Per Pack |
|---|---|---|
| 5 - 245 | € 0.748 | € 3.74 |
| 250 - 745 | € 0.525 | € 2.62 |
| 750 - 1245 | € 0.338 | € 1.69 |
| 1250+ | € 0.265 | € 1.32 |
