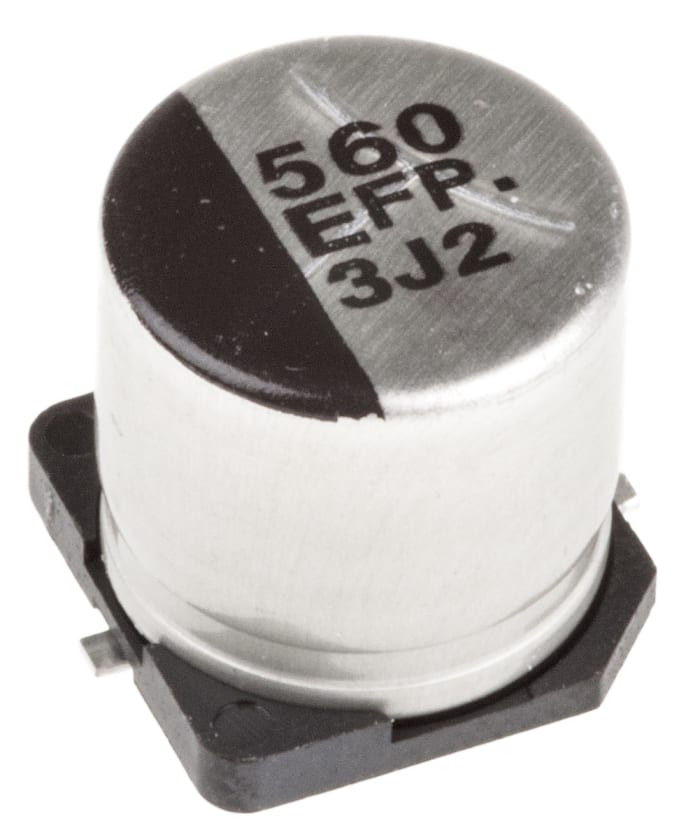

Panasonic 560μF Aluminium Electrolytic Capacitor 25V dc, Surface Mount - EEEFPE561UAP
Technical Document
Specifications
Brand
PanasonicCapacitance
560µF
Voltage
25V dc
Mounting Type
Surface Mount
Technology
Aluminium Electrolytic
Dimensions
10 (Dia.) x 10.2mm
Height
10.2mm
Minimum Operating Temperature
-55°C
Diameter
10mm
Maximum Operating Temperature
+105°C
Lifetime
2000h
Ripple Current
850mA
Leakage Current
0.01 CV or 3 μA
Tolerance
±20%
Series
FP SMD
Equivalent Series Resistance
80mΩ
Polarised
Polar
Country of Origin
Malaysia
Product details
FP Series reels
Full reels of surface mount V type Electrolytic capacitors able to withstand high reflow temperatures for extended periods
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
€ 177.03
€ 0.354 Each (On a Reel of 500) (Exc. VAT)
500
€ 177.03
€ 0.354 Each (On a Reel of 500) (Exc. VAT)
Stock information temporarily unavailable.
500
| Quantity | Unit price | Per Reel |
|---|---|---|
| 500 - 500 | € 0.354 | € 177.03 |
| 1000 - 1500 | € 0.339 | € 169.58 |
| 2000 - 2500 | € 0.33 | € 165.00 |
| 3000 - 4500 | € 0.322 | € 160.98 |
| 5000+ | € 0.314 | € 156.98 |
