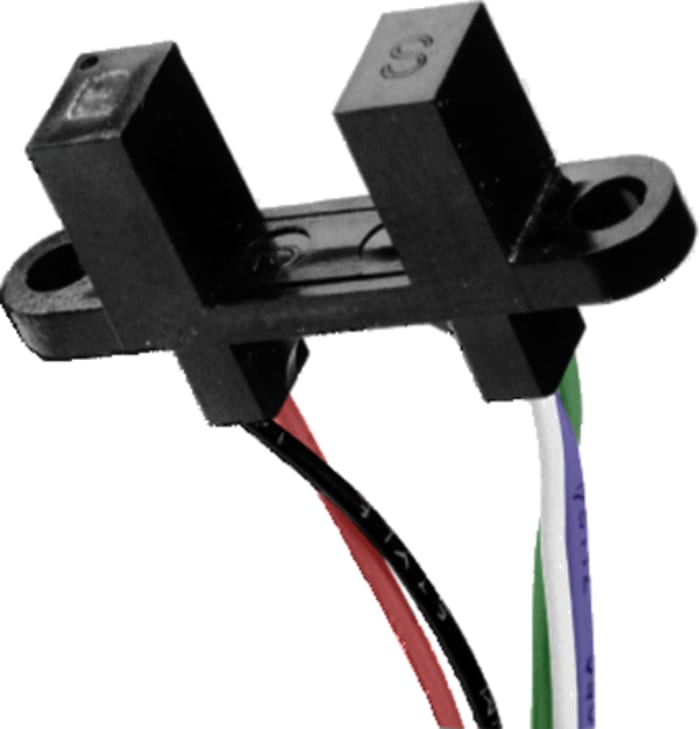

OPB900W55Z Optek, Screw Mount Slotted Optical Switch, Transistor Output
Technical Document
Specifications
Brand
OptekOutput Device
Transistor
Number of Channels
1
Typical Rise Time
70ns
Typical Fall Time
70ns
Mounting Type
Screw Mount
Number of Pins
5
Dimensions
30.99 x 6.35 x 10.8mm
Height
10.8mm
Length
30.99mm
Maximum Operating Temperature
+70°C
Minimum Operating Temperature
-40°C
Slot Width
9.53mm
Width
6.35mm
Series
OPB900
Operating Temperature Range
-40 → +70°C
Country of Origin
Mexico
Product details
OPB900 to OPB913 Photologic Series Slotted Optical Switches
The OPB900 to OPB913 series, from Optek Technology, are a family of Photologic® slotted optical switches. These integrated circuit switches offer a standard housing with added flexibility for design engineers. This includes choice of type and polarity of the TTL output and shell material.
The L series of slotted optical switches are PCB mounted whilst the W series come with 26 AWG wires. Suitable applications for the OPB900 to OPB913 series include; mechanical switch replacements, speed indication, mechanical limit indication, edge sensing and object sensing.
Slotted Optical Switches, Optek Technology
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
€ 6.64
€ 6.64 Each (Exc. VAT)
1
€ 6.64
€ 6.64 Each (Exc. VAT)
Stock information temporarily unavailable.
1
Stock information temporarily unavailable.
| Quantity | Unit price |
|---|---|
| 1 - 9 | € 6.64 |
| 10 - 49 | € 6.40 |
| 50 - 99 | € 6.24 |
| 100 - 199 | € 6.09 |
| 200+ | € 5.93 |
