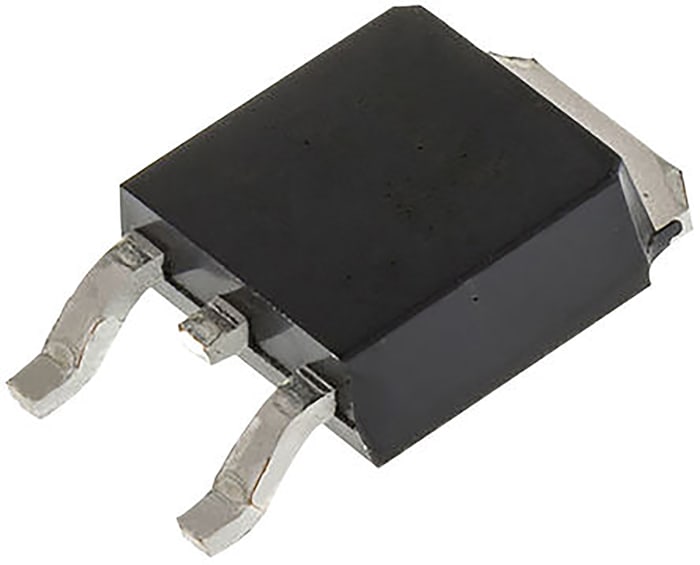

onsemi NJD35N04G NPN Darlington Transistor, 4 A 350 V HFE:300, 3-Pin DPAK
Technical Document
Specifications
Brand
onsemiTransistor Type
NPN
Maximum Continuous Collector Current
4 A
Maximum Collector Emitter Voltage
350 V
Maximum Emitter Base Voltage
5 V
Package Type
DPAK (TO-252)
Mounting Type
Surface Mount
Pin Count
3
Transistor Configuration
Single
Number of Elements per Chip
1
Minimum DC Current Gain
300
Maximum Base Emitter Saturation Voltage
2 V
Maximum Collector Base Voltage
700 V
Maximum Collector Emitter Saturation Voltage
1.5 V
Maximum Collector Cut-off Current
250µA
Minimum Operating Temperature
-65 °C
Maximum Power Dissipation
45 W
Length
6.73mm
Dimensions
6.73 x 6.22 x 2.38mm
Width
6.22mm
Height
2.38mm
Maximum Operating Temperature
+150 °C
Product details
NPN Darlington Transistors, ON Semiconductor
Standards
Manufacturer Part Nos with S or NSV prefix are automotive qualified to AEC-Q101 standard.
