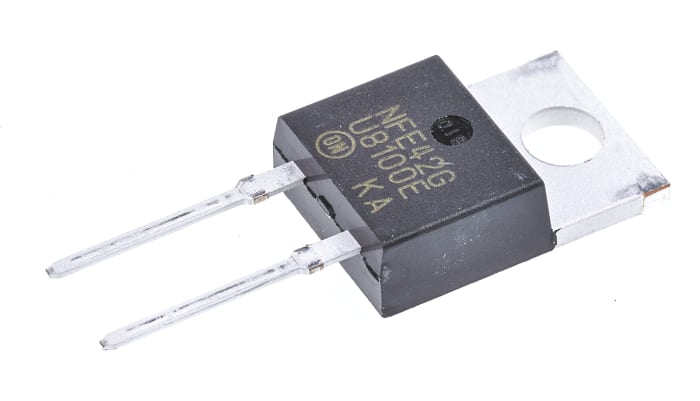

onsemi 1 kV 8 A Diode Switching 2-Pin TO-220 MUR8100EG
Technical Document
Specifications
Brand
onsemiMount Type
Through Hole
Product Type
Diode
Package Type
TO-220
Maximum Continuous Forward Current If
8A
Peak Reverse Repetitive Voltage Vrrm
1kV
Diode Configuration
Single
Rectifier Type
Switching
Pin Count
2
Maximum Forward Voltage Vf
1.8V
Minimum Operating Temperature
-65°C
Peak Non-Repetitive Forward Surge Current Ifsm
100A
Peak Reverse Current Ir
25μA
Peak Reverse Recovery Time trr
100ns
Maximum Operating Temperature
175°C
Standards/Approvals
No
Width
4.82 mm
Length
10.29mm
Height
9.27mm
Automotive Standard
AEC-Q101
Country of Origin
Czech Republic
Product details
Rectifier Diodes, 4A to 9A, ON Semiconductor
Standards
Products with NSV- or S-prefixed Manufacturer Part Nos are AEC-Q101 automotive qualified.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
€ 41.13
€ 0.823 Each (In a Tube of 50) (Exc. VAT)
50
€ 41.13
€ 0.823 Each (In a Tube of 50) (Exc. VAT)
Stock information temporarily unavailable.
50
| Quantity | Unit price | Per Tube |
|---|---|---|
| 50 - 50 | € 0.823 | € 41.13 |
| 100 - 200 | € 0.641 | € 32.02 |
| 250 - 450 | € 0.621 | € 31.05 |
| 500 - 950 | € 0.541 | € 27.04 |
| 1000+ | € 0.541 | € 27.04 |
