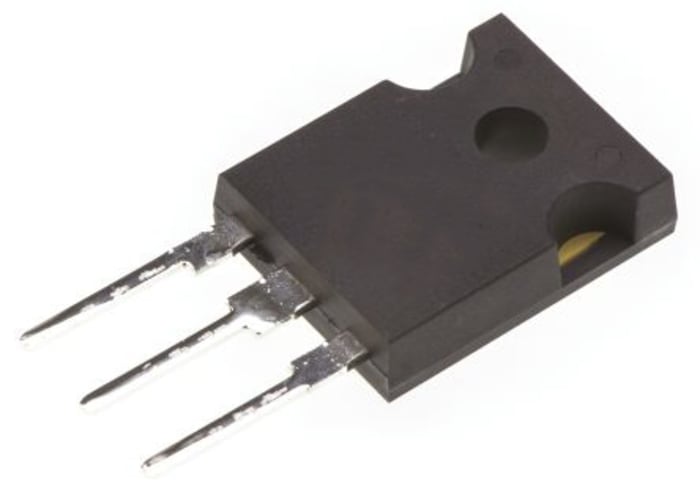

onsemi MJW1302AG PNP Transistor, -15 A, -230 V, 3-Pin TO-247

RS Stock No.: 184-1219Brand: onsemiManufacturers Part No.: MJW1302AG
brand-logo
View all in Bipolar Transistors

Technical Document

Specifications

Brand

onsemi

Transistor Type

PNP

Maximum DC Collector Current

-15 A

Maximum Collector Emitter Voltage

-230 V

Package Type

TO-247

Mounting Type

Through Hole

Maximum Power Dissipation

200 W

Transistor Configuration

Single

Maximum Collector Base Voltage

230 V

Maximum Emitter Base Voltage

5 V

Maximum Operating Frequency

1 MHz

Pin Count

3

Number of Elements per Chip

1

Dimensions

16.26 x 5.3 x 21.08mm

Maximum Operating Temperature

+150 °C

Country of Origin

China
