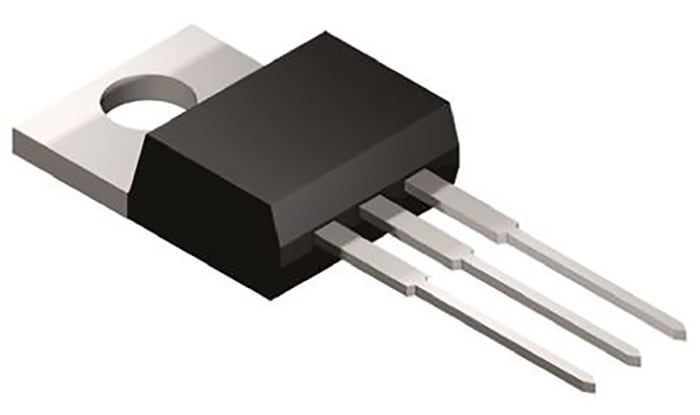

onsemi MJE15028G NPN Transistor, 8 A, 120 V, 3-Pin TO-220AB
Technical Document
Specifications
Brand
onsemiTransistor Type
NPN
Maximum DC Collector Current
8 A
Maximum Collector Emitter Voltage
120 V
Package Type
TO-220AB
Mounting Type
Through Hole
Maximum Power Dissipation
50 W
Transistor Configuration
Single
Maximum Collector Base Voltage
120 V
Maximum Emitter Base Voltage
5 V
Maximum Operating Frequency
30 MHz
Pin Count
3
Number of Elements per Chip
1
Maximum Operating Temperature
+150 °C
Dimensions
9.28 x 10.28 x 4.82mm
Product details
NPN Power Transistors, ON Semiconductor
Standards
Manufacturer Part Nos with NSV prefix are automotive qualified to AEC-Q101 standard.
