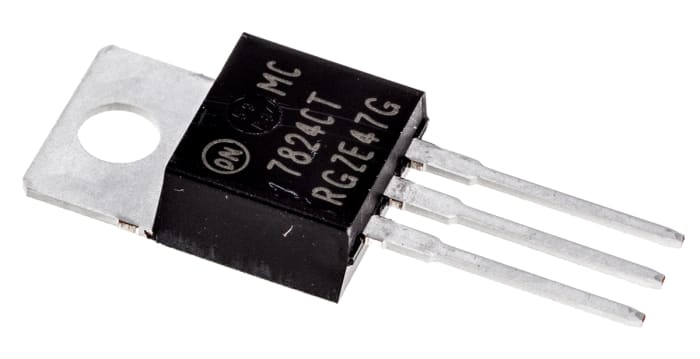

onsemi MC7824CTG, 5-Channel Linear, Voltage Regulator, 1 A, 24 V, TO-220 3-Pin

RS Stock No.: 102-3493Brand: onsemiManufacturers Part No.: MC7824CTGDistrelec Article No.: 304-37-285
brand-logo
View all in Voltage Regulators

Technical Document

Specifications

Brand

onsemi

Product Type

Voltage Regulator

Regulator Type

Linear

Line Regulation

60 mV

Load Regulation

65 mV

Mount Type

Through Hole

Polarity

Positive

Package Type

TO-220

Quiescent Current

3.6mA

Output Current

1A

Pin Count

3

Output Type

Fixed

Switching Regulator

No

Height

30.02mm

Length

10.28mm

Standards/Approvals

RoHS

Series

MC78xx

Minimum Operating Temperature

0°C

Maximum Operating Temperature

125°C

Maximum Input Voltage

40V

Minimum Input Voltage

24V

Automotive Standard

AEC-Q100

Product details

7824 Linear Voltage Regulator, ON Semiconductor

Linear Voltage Regulators, ON Semiconductor
