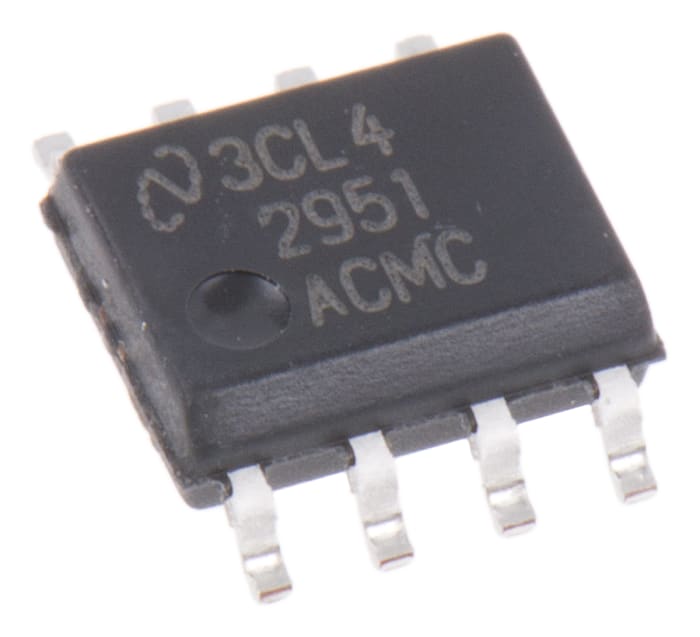

onsemi LP2951ACDR2G, 1 Low Dropout Voltage, Voltage Regulator 100mA, 1.25 → 29 V 8-Pin, SOIC
Technical Document
Specifications
Brand
onsemiMaximum Output Current
100mA
Regulator Type
Low Dropout Voltage
Number of Outputs
1
Output Voltage
1.25 → 29 V
Line Regulation
0.1 %
Load Regulation
0.1 %
Accuracy
±0.5%
Mounting Type
Surface Mount
Polarity
Positive
Quiescent Current
0.075mA
Package Type
SOIC
Reference Voltage
1.25V
Pin Count
8
Output Type
Adjustable, Fixed
Dimensions
5 x 4 x 1.5mm
Height
1.5mm
Minimum Operating Temperature
-40 °C
Maximum Operating Temperature
+125 °C
Maximum Input Voltage
30 V
Length
5mm
Width
4mm
Product details
Low Dropout (LDO) Linear Voltage Regulators, Adjustable, ON Semiconductor
LDO (Low Dropout) Linear Voltage Regulators, ON Semiconductor
The Low dropout or LDO is a linear voltage regulator. We have a wide range of linear regulators. The LDO regulator can operate with a small input–output differential voltage. LDO voltage regulators may offer fast transient response, wide input voltage range, low quiescent current and low noise with high PSRR.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
$ 2.07
$ 1.036 Each (In a Pack of 2) (Exc. VAT)
Standard
2
$ 2.07
$ 1.036 Each (In a Pack of 2) (Exc. VAT)
Stock information temporarily unavailable.
Standard
2
Stock information temporarily unavailable.
| Quantity | Unit price | Per Pack |
|---|---|---|
| 2 - 18 | $ 1.036 | $ 2.07 |
| 20 - 198 | $ 0.891 | $ 1.78 |
| 200 - 998 | $ 0.773 | $ 1.55 |
| 1000+ | $ 0.682 | $ 1.36 |
