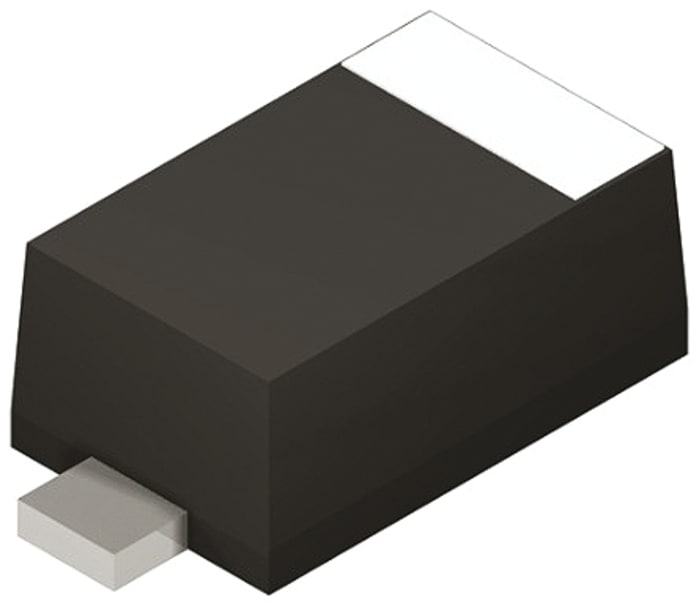

onsemi 30 V 200 mA Diode Switching 2-Pin SOD-323
Technical Document
Specifications
Brand
onsemiProduct Type
Diode
Mount Type
Surface
Package Type
SOD-323
Maximum Continuous Forward Current If
200mA
Peak Reverse Repetitive Voltage Vrrm
30V
Diode Configuration
Single
Series
BAT54H
Rectifier Type
Switching
Pin Count
2
Peak Reverse Current Ir
2μA
Minimum Operating Temperature
-55°C
Peak Non-Repetitive Forward Surge Current Ifsm
600mA
Maximum Forward Voltage Vf
800mV
Peak Reverse Recovery Time trr
5ns
Maximum Operating Temperature
150°C
Height
1mm
Length
1.8mm
Standards/Approvals
RoHS
Automotive Standard
AEC-Q101
Product details
ON Semiconductor Schottky Barrier Diodes
This ON Semiconductor Schottky power rectifier employs the Schottky barrier principle using a barrier metal to create the best forward voltage drop−reverse current exchange. Suitable for low voltage, high-frequency rectification as well as a freewheeling and polarity protection diode in a range of surface mount applications wherever a more compact size and weight are key.
• Pb-Free
• Designed for Optimal Automated Board Assembly
• Stress protection guarding
• Epoxy Moulded Case
• Lightweight 11.7mg package
Standards
Products with NSV-, SBR- or S-prefixed Manufacturer Part Nos are AEC-Q101 automotive qualified.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
€ 4.62
€ 0.046 Each (Supplied on a Reel) (Exc. VAT)
Production pack (Reel)
100
€ 4.62
€ 0.046 Each (Supplied on a Reel) (Exc. VAT)
Stock information temporarily unavailable.
Production pack (Reel)
100
| Quantity | Unit price | Per Reel |
|---|---|---|
| 100 - 240 | € 0.046 | € 0.46 |
| 250 - 490 | € 0.039 | € 0.39 |
| 500 - 990 | € 0.035 | € 0.35 |
| 1000+ | € 0.031 | € 0.31 |
