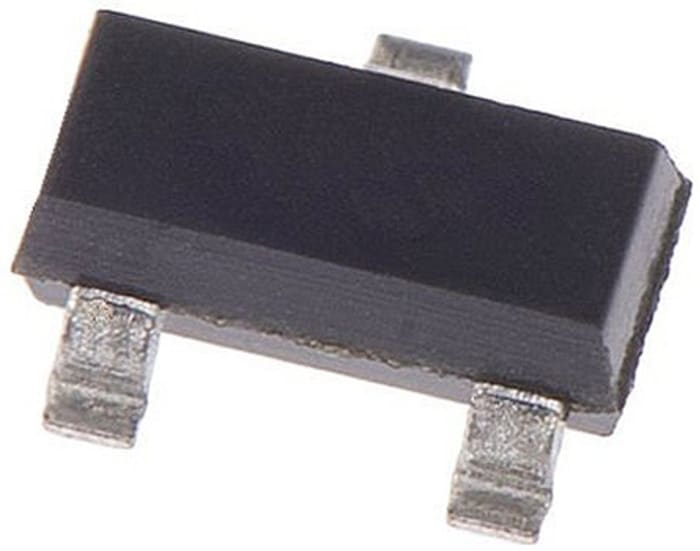

onsemi 70 V 70 mA Diode Schottky 3-Pin SOT-23 BAS70LT1G
Technical Document
Specifications
Brand
onsemiProduct Type
Diode
Mount Type
Surface
Package Type
SOT-23
Maximum Continuous Forward Current If
70mA
Peak Reverse Repetitive Voltage Vrrm
70V
Series
BAS70
Diode Configuration
Single
Rectifier Type
Schottky
Pin Count
3
Maximum Forward Voltage Vf
1V
Peak Reverse Current Ir
10μA
Minimum Operating Temperature
-55°C
Peak Non-Repetitive Forward Surge Current Ifsm
100mA
Maximum Operating Temperature
150°C
Length
3.04mm
Standards/Approvals
No
Height
1.01mm
Automotive Standard
AEC-Q101
Product details
ON Semiconductor Schottky Barrier Diodes
This ON Semiconductor Schottky power rectifier employs the Schottky barrier principle using a barrier metal to create the best forward voltage drop−reverse current exchange. Suitable for low voltage, high-frequency rectification as well as a freewheeling and polarity protection diode in a range of surface mount applications wherever a more compact size and weight are key.
• Pb-Free
• Designed for Optimal Automated Board Assembly
• Stress protection guarding
• Epoxy Moulded Case
• Lightweight 11.7mg package
Standards
Products with NSV-, SBR- or S-prefixed Manufacturer Part Nos are AEC-Q101 automotive qualified.
