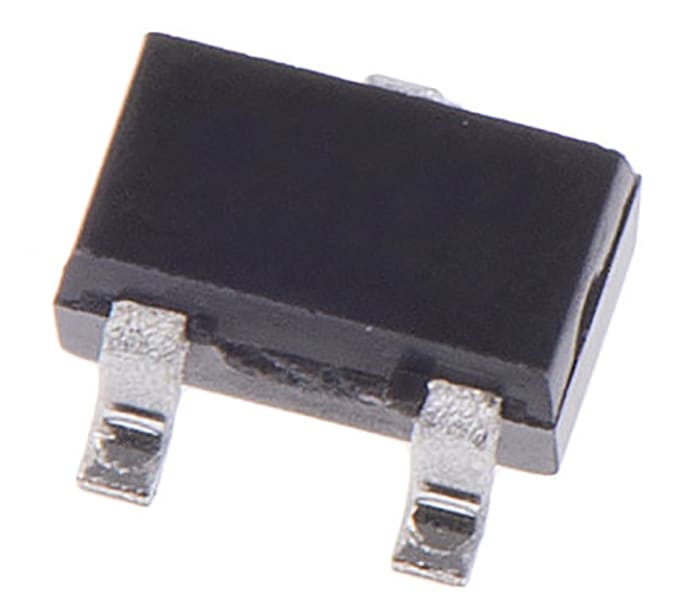

onsemi 100 V 200 mA Diode Switching 3-Pin SC-70
Technical Document
Specifications
Brand
onsemiProduct Type
Diode
Mount Type
Surface
Package Type
SC-70
Maximum Continuous Forward Current If
200mA
Peak Reverse Repetitive Voltage Vrrm
100V
Diode Configuration
Single
Rectifier Type
Switching
Pin Count
3
Peak Reverse Current Ir
50μA
Maximum Forward Voltage Vf
1.25V
Minimum Operating Temperature
-55°C
Peak Non-Repetitive Forward Surge Current Ifsm
500mA
Peak Reverse Recovery Time trr
6ns
Maximum Operating Temperature
150°C
Width
1.35 mm
Length
2.2mm
Height
0.9mm
Standards/Approvals
No
Automotive Standard
AEC-Q101
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
€ 37.81
€ 0.013 Each (On a Reel of 3000) (Exc. VAT)
3000
€ 37.81
€ 0.013 Each (On a Reel of 3000) (Exc. VAT)
Stock information temporarily unavailable.
3000
| Quantity | Unit price | Per Reel |
|---|---|---|
| 3000 - 6000 | € 0.013 | € 37.81 |
| 9000 - 21000 | € 0.013 | € 37.81 |
| 24000 - 42000 | € 0.011 | € 34.37 |
| 45000 - 96000 | € 0.009 | € 27.50 |
| 99000+ | € 0.008 | € 24.06 |
