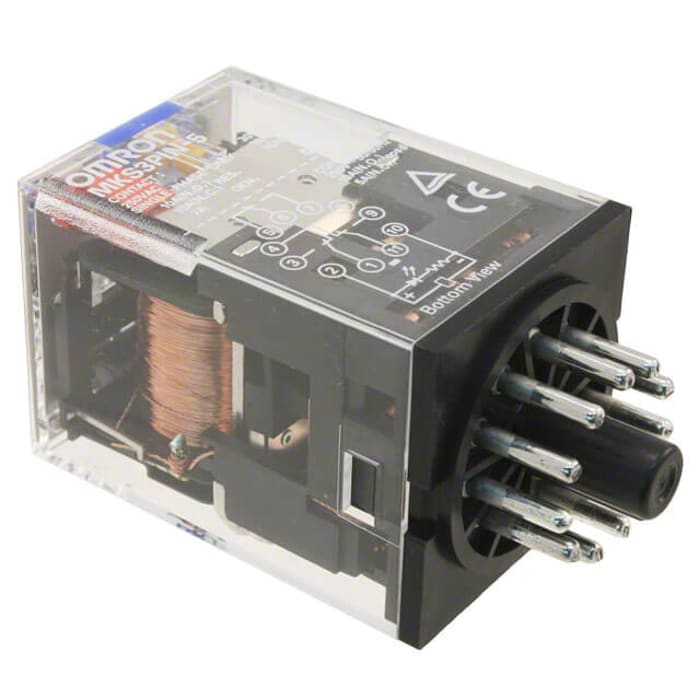

Omron Plug In Power Relay, 24V dc Coil, 10A Switching Current, 3PDT
Technical Document
Specifications
Brand
OmronCoil Voltage
24V dc
Contact Configuration
3PDT
Mounting Type
Plug In
Switching Current
10A
Number of Poles
3
Latching
No
Series
MKS
Terminal Type
Plug In
Maximum Switching Voltage AC
250V ac
Maximum Switching Voltage DC
250V dc
Length
34.5mm
Coil Resistance
430Ω
Minimum Operating Temperature
-25°C
Maximum Operating Temperature
+60°C
Contact Material
Silver Alloy
Depth
34.5mm
Height
53.3mm
Standards Met
cURus
Maximum Switching Power AC
2.5 kVA
Maximum Switching Power DC
300 W
Dimensions
34.5 x 34.5 x 53.3mm
Application
General Purpose
Country of Origin
China
Product details
General Purpose Relays, MKS Series
All units have a Mechanical indicator and lockable test button (with nameplate)
Units with a "-5" in the Manufacturer Part Number have non-standard connections, refer to datasheet
Contact rating: 10A at 30Vdc/250Vac
Contact material: AgSnIn
Operating temperature: -40 → +60 °C
