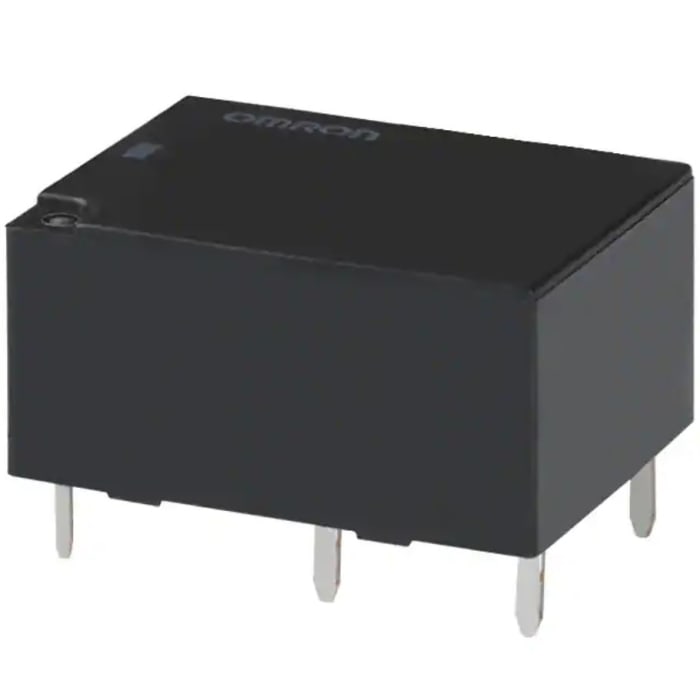

Omron PCB Mount Power Relay, 12V dc Coil, 8A Switching Current, SPST
Technical Document
Specifications
Brand
OmronCoil Voltage
12V dc
Contact Configuration
SPST
Mounting Type
PCB Mount
Switching Current
8A
Number of Poles
1
Latching
No
Terminal Type
PCB Pin
Maximum Switching Voltage AC
380V ac
Maximum Switching Voltage DC
125V dc
Length
20mm
Coil Resistance
720Ω
Coil Power
200mW
Series
G6C
Minimum Operating Temperature
-25°C
Maximum Operating Temperature
+70°C
Isolation Coil To Contact
2kV ac
Depth
15mm
Life
100000 (Electrical) Operations, 50000000 (Mechanical) Operations
Height
10mm
Contact Material
Silver Alloy
Maximum Switching Power DC
240 W
Maximum Switching Power AC
2 kVA
Application
Power
Product details
G6C Series
Low power consumption, 200mW
Flux protection or fully sealed types available
Compact size, L20xW15xH10 mm
Approvals
UL, CSA (SEV for those with SV within the Manufacturer part number)
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
€ 10.59
€ 10.59 Each (Exc. VAT)
1
€ 10.59
€ 10.59 Each (Exc. VAT)
Stock information temporarily unavailable.
1
Stock information temporarily unavailable.
| Quantity | Unit price |
|---|---|
| 1 - 24 | € 10.59 |
| 25 - 49 | € 8.93 |
| 50 - 99 | € 8.52 |
| 100 - 249 | € 8.04 |
| 250+ | € 7.11 |
