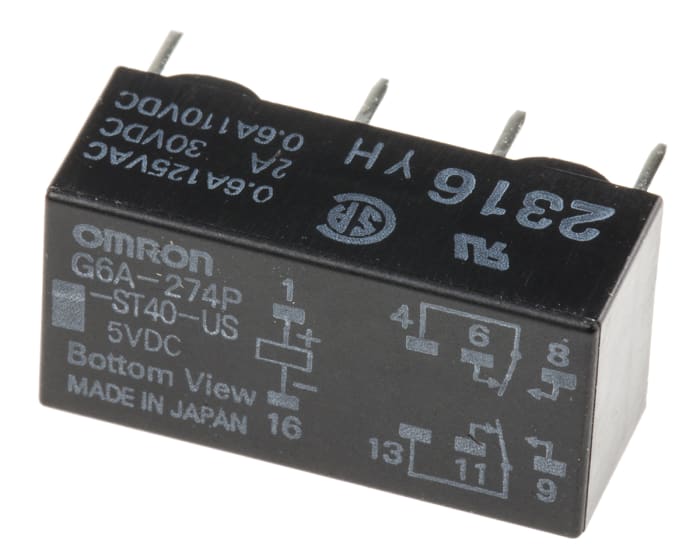

Omron PCB Mount Signal Relay, 5V dc Coil, 2A Switching Current, DPDT
Technical Document
Specifications
Brand
OmronCoil Voltage
5V dc
Contact Configuration
DPDT
Mounting Type
PCB Mount
Maximum Switching Current AC
2 A
Maximum Switching Current DC
1 A
Maximum Switching Voltage AC
250V
Maximum Switching Voltage DC
220V
Series
G6A
Maximum Switching Power DC
60 W
Latching
No
Length
20.2mm
Depth
10.1mm
Height
8.4mm
Dimensions
20.2 x 8 x 10.1mm
Terminal Type
PCB Pin
Number of Poles
2
Application
Signal
Switching Current
2A
Features
Resistant To Electromagnetic Interference, Conforms to FCC Part Requirements, Bifurcated Contacts
Contact Material
Gold Plated
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
+70°C
Isolation Coil To Contact
1kV ac
Coil Power
200mW
Life
500000 Operations
Maximum Switching Power AC
125VA
Coil Resistance
125Ω
Operating Temperature Range
-40 → +70°C
Country of Origin
Japan
Product details
G6A Series DPCO
Fully sealed
Low magnetic leakage
Impulse withstand voltage of 1500V
Ideal for telecommunications equipment
Approvals
UL, CSA
