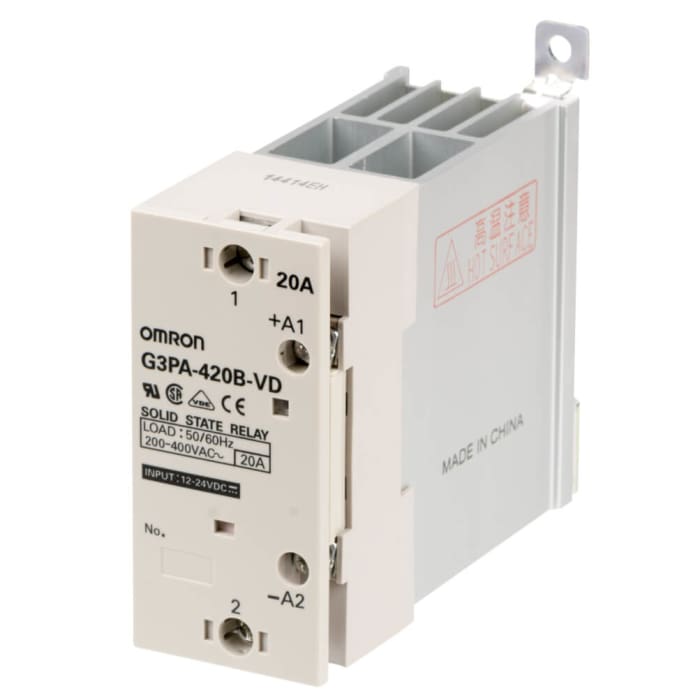

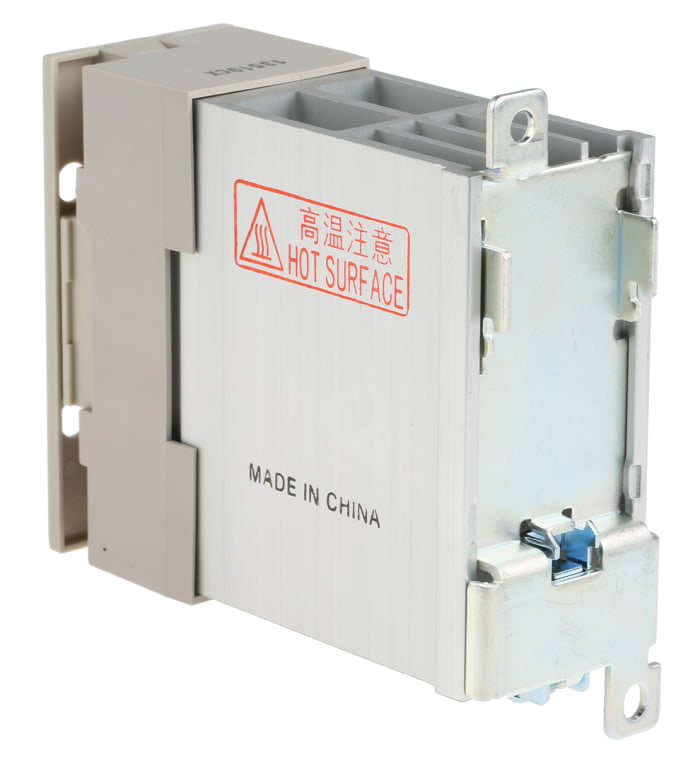

Omron G3PA Series Solid State Relay, 20 A Load, DIN Rail Mount, 440 V Load, 30V Control
Technical Document
Specifications
Brand
OmronMaximum Load Current
20A
Product Type
Solid State Relay
Mount Type
DIN Rail
Maximum Load Voltage
440V
Minimum Load Voltage
180V ac
Maximum Control Voltage
30V
Series
G3PA
Terminal Type
Screw
Contact Configuration
SPST-NO
Minimum Operating Temperature
-30°C
Switching Function
Zero Cross Switching
Maximum Operating Temperature
80°C
Height
100mm
Length
100mm
Standards/Approvals
EN, RoHS, UL
Width
80mm
Output Type
Photo Triac
Product details
DIN Rail Mount SSR's
Replaceable SSR power cartridge
DIN rail or surface mounting options
Finger protected terminals
LED input status indicator
Thermal overload indicator changes colour permanently to indicate possibility of a damaged power cartridge
Inputs may be ’commoned’ via integral linking terminals
Release Voltage 1 Vdc (Min)
Operating Temperature Range -30 to +80°C
Approvals
UL; CSA; VDE
Zero Voltage Relays
Stock information temporarily unavailable.
€ 167.42
€ 167.42 Each (Exc. VAT)
1
€ 167.42
€ 167.42 Each (Exc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 4 | € 167.42 |
| 5 - 9 | € 162.29 |
| 10+ | € 155.36 |
