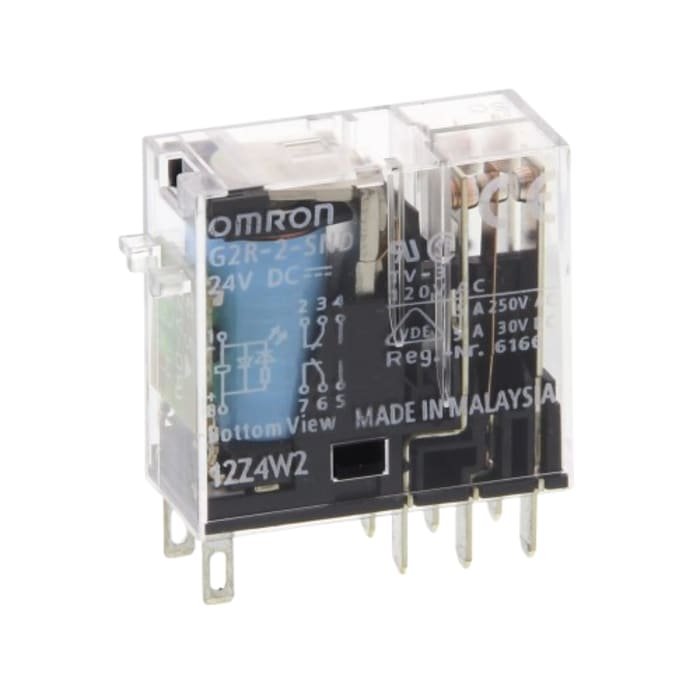

Omron Power Relay, 24V dc Coil, 5A Switching Current, DPDT
Technical Document
Specifications
Brand
OmronProduct Type
Power Relay
Coil Voltage
24V dc
Contact Configuration
DPDT
Series
G2R
Terminal Type
Plug-In
Switching Current
5A
Minimum Operating Temperature
-40°C
Switching Power
600mW
Switching DC Voltage
125V dc
Switching AC Voltage
125V ac
Coil Resistance
1.1kΩ
Maximum Operating Temperature
70°C
Height
35.5mm
Coil Power
530mW
Length
29mm
Standards/Approvals
UL, CSA
Width
13mm
Contact Material
Silver Alloy
Contact Resistance
50mΩ
Country of Origin
Malaysia
Product details
G2RS Series with LED indicator and diode
Omron G2RS Series general-purpose and space-saving power plug-in relays with built-in mechanical operation indicator.
Provided with nameplate
AC type has a coil-disconnection self-diagnostic function (LED type)
Lead and Cadmium free
Environment-friendly
High switching power (1 pole: 10 A)
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
€ 12.94
€ 12.94 Each (Exc. VAT)
1
€ 12.94
€ 12.94 Each (Exc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 4 | € 12.94 |
| 5 - 9 | € 12.54 |
| 10+ | € 11.99 |
