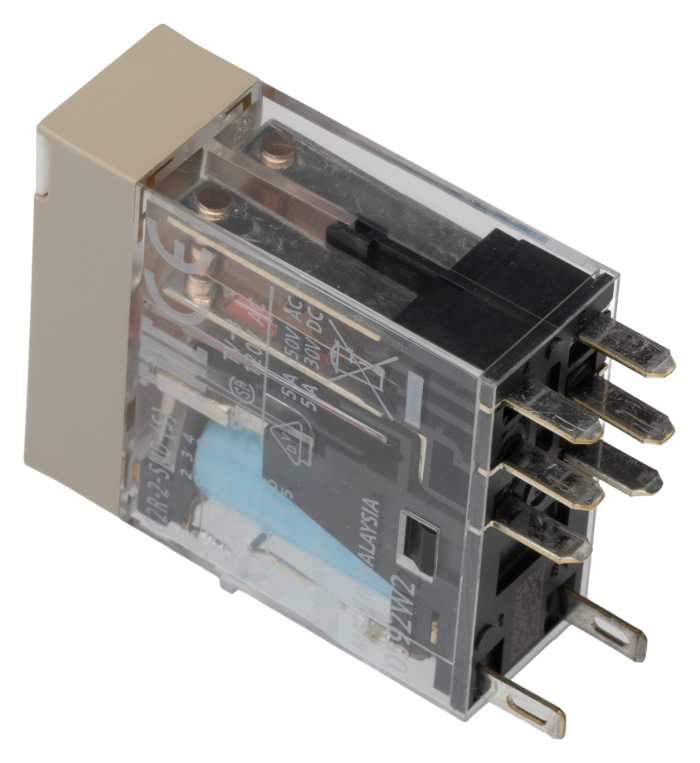

Omron Power Relay, 12V Coil, 5A Switching Current, DPDT
Technical Document
Specifications
Brand
OmronProduct Type
Power Relay
Coil Voltage
12V
Contact Configuration
DPDT
Series
G2R
Terminal Type
Plug-In
Switching Current
5A
Height
35.5mm
Length
29mm
Standards/Approvals
IEC/VDE (Certificate No. 40015012 EN 61810-1), CE, No.14 (File No. LR31928), UL 508 (File No. E41643), CSA 22.2 No.0
Width
13mm
Product details
G2R Series
General purpose PCB power relay used in various domestic and commercial applications
8mm creepage/clearance
H25.5 x W13 x D29 mm
Approvals
UL508; CSA22.2; EN 61810-1; SEV; SEMKO
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
€ 12.94
€ 12.94 Each (Exc. VAT)
1
€ 12.94
€ 12.94 Each (Exc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 4 | € 12.94 |
| 5 - 9 | € 12.54 |
| 10+ | € 11.99 |
