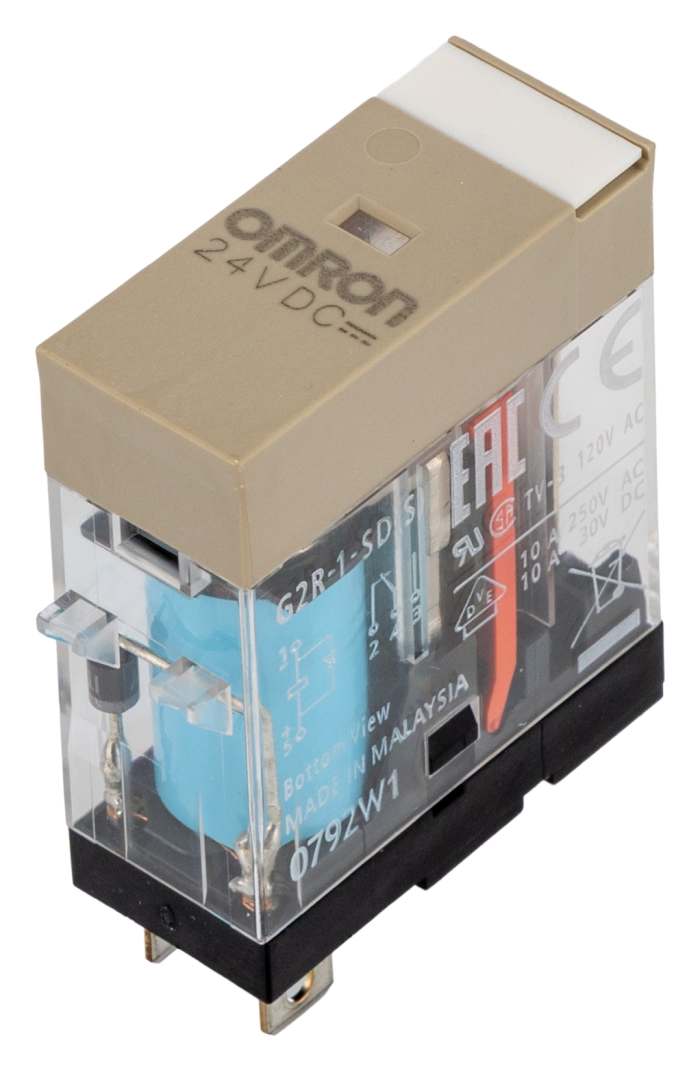

Omron Power Relay, 24V dc Coil, 6A Switching Current, SPDT
Technical Document
Specifications
Brand
OmronProduct Type
Power Relay
Coil Voltage
24V dc
Contact Configuration
SPDT
Series
G2R
Terminal Type
Plug-In
Switching Current
6A
Minimum Operating Temperature
-40°C
Switching Power
0.9W
Switching DC Voltage
125V dc
Switching AC Voltage
125V ac
Coil Resistance
1.1kΩ
Maximum Operating Temperature
70°C
Height
5.2mm
Coil Power
300mW
Length
30.5mm
Standards/Approvals
CSA, UL
Width
29.5mm
Contact Material
Silver Alloy
Contact Resistance
30mΩ
Country of Origin
Malaysia
Product details
G2RS Series with LED indicator and diode
Omron G2RS Series general-purpose and space-saving power plug-in relays with built-in mechanical operation indicator.
Provided with nameplate
AC type has a coil-disconnection self-diagnostic function (LED type)
Lead and Cadmium free
Environment-friendly
High switching power (1 pole: 10 A)
