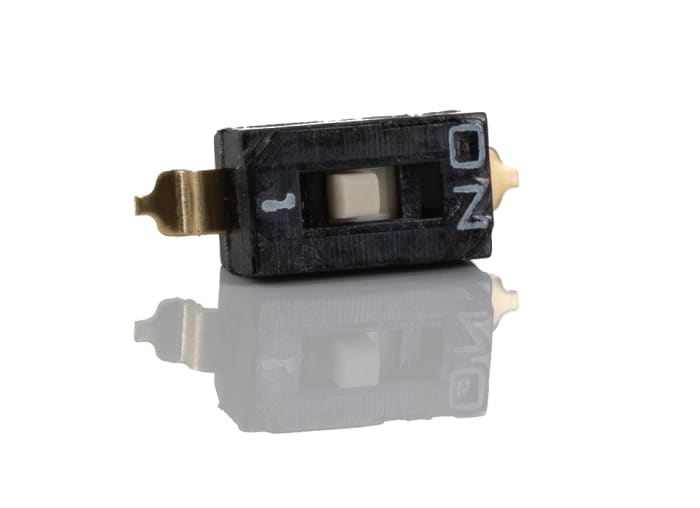

Omron 1 Way Surface Mount DIP Switch SPST
Technical Document
Specifications
Brand
OmronNumber of Positions
1
Mounting Type
Surface Mount
Contact Material
Gold Plated
Contact Configuration
SPST
Package Style
DIP
Actuator Type
Slide
Contact Current Rating
25 mA@ 24 V dc
Mechanical Life
1000Operations
Maximum Operating Temperature
+70°C
Minimum Operating Temperature
-20°C
Operating Temperature Range
-20 → +70°C
Dielectric Strength
500V ac
Product details
Slide Switch
Surface mount DIL switches designed to DIL standards. Allow automatic mounting with IC insertion machines.
Surface mounting
Flat actuators available as sealed tape versions
Gold plated contacts
Contact resistance: 200mΩ max
Insulation resistance: 100MΩ min at 250Vdc
RoHS compliant
Mechanical life: 1000 operations
Dual-In-Line Switches
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
Please check again later.
€ 1.893
Each (In a Pack of 5) (Exc. VAT)
Standard
5
€ 1.893
Each (In a Pack of 5) (Exc. VAT)
Standard
5
Buy in bulk
| Quantity | Unit price | Per Pack |
|---|---|---|
| 5 - 245 | € 1.893 | € 9.47 |
| 250 - 495 | € 1.586 | € 7.93 |
| 500 - 1245 | € 1.531 | € 7.65 |
| 1250 - 2495 | € 1.493 | € 7.46 |
| 2500+ | € 1.469 | € 7.34 |
