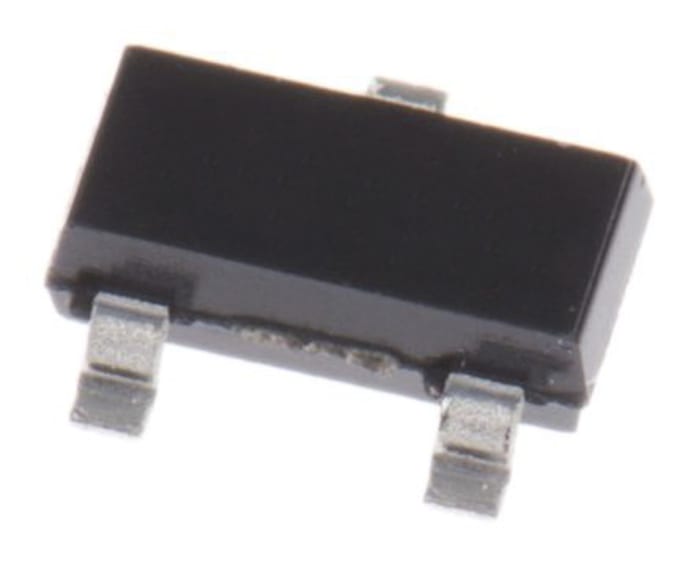

Nexperia PESD5V2S2UT,215 2-Element Uni-Directional TVS Diode, 260 W, 3-Pin SOT-23
Technical Document
Specifications
Brand
NexperiaDiode Configuration
Common Anode
Product Type
TVS Diode
Direction Type
Uni-Directional
Minimum Breakdown Voltage Vbr
6.4V
Mount Type
Surface
Package Type
SOT-23
Maximum Reverse Stand-off Voltage Vwm
5.2V
Pin Count
3
Peak Pulse Power Dissipation Pppm
260W
Clamping Voltage VC
20V
Minimum Operating Temperature
-65°C
Test Current It
5mA
Maximum Peak Pulse Current Ippm
15A
ESD Protection
Yes
Number of Elements per Chip
2
Maximum Operating Temperature
150°C
Width
1.4 mm
Height
1mm
Standards/Approvals
No
Series
PESD
Length
3mm
Maximum Reverse Leakage Current
1μA
Automotive Standard
AEC-Q101
