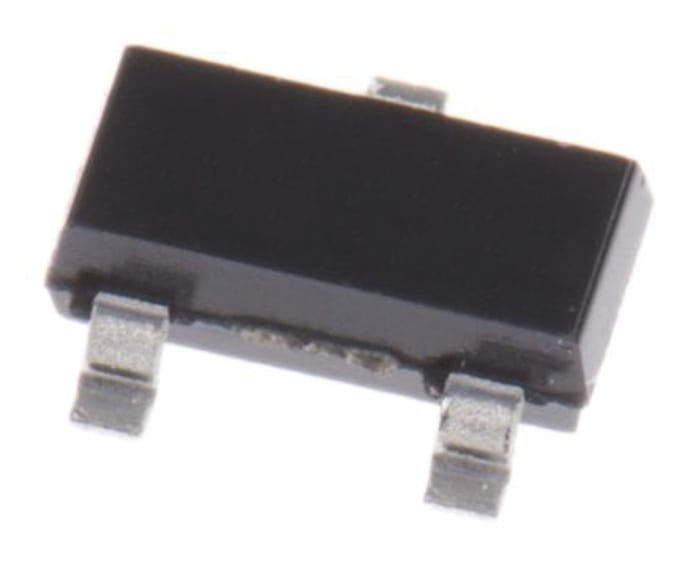

Nexperia PESD1CAN,215 2-Element Bi-Directional TVS Diode, 200 W, 3-Pin SOT-23
Technical Document
Specifications
Brand
NexperiaDiode Configuration
Series
Product Type
TVS Diode
Direction Type
Bi-Directional
Minimum Breakdown Voltage Vbr
25.4V
Mount Type
Surface
Package Type
SOT-23
Maximum Reverse Stand-off Voltage Vwm
24V
Pin Count
3
Peak Pulse Power Dissipation Pppm
200W
Clamping Voltage VC
70V
Minimum Operating Temperature
-65°C
Test Current It
5mA
Maximum Peak Pulse Current Ippm
3A
ESD Protection
Yes
Number of Elements per Chip
2
Maximum Operating Temperature
150°C
Width
1.4 mm
Height
1mm
Length
3mm
Standards/Approvals
No
Series
PESD
Maximum Reverse Leakage Current
50nA
Automotive Standard
AEC-Q101
Country of Origin
Malaysia
Product details
PESD1CAN, CAN Bus ESD Protection Diode, Nexperia
PESD1CAN in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package designed to protect two automotive Controller Area Network (CAN) bus lines from the damage caused by ElectroStatic Discharge (ESD) and other transients.
Transient Voltage Suppressors, Nexperia
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
€ 6.14
€ 0.307 Each (In a Pack of 20) (Exc. VAT)
20
€ 6.14
€ 0.307 Each (In a Pack of 20) (Exc. VAT)
Stock information temporarily unavailable.
20
| Quantity | Unit price | Per Pack |
|---|---|---|
| 20 - 180 | € 0.307 | € 6.14 |
| 200 - 480 | € 0.283 | € 5.66 |
| 500 - 980 | € 0.263 | € 5.27 |
| 1000 - 1980 | € 0.243 | € 4.86 |
| 2000+ | € 0.224 | € 4.47 |
