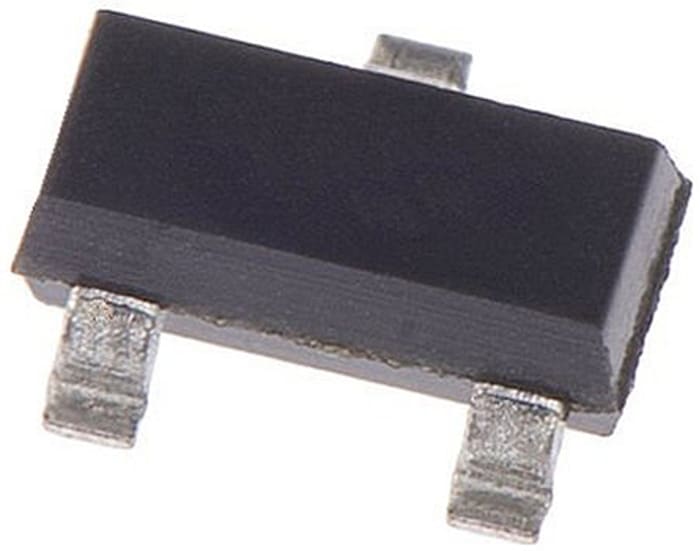

Nexperia 85 V 215 mA Diode Switching 3-Pin SOT-23 BAS116,215
Technical Document
Specifications
Brand
NexperiaProduct Type
Diode
Mount Type
Surface
Package Type
SOT-23
Maximum Continuous Forward Current If
215mA
Peak Reverse Repetitive Voltage Vrrm
85V
Series
BAS116
Diode Configuration
Single
Rectifier Type
Switching
Pin Count
3
Peak Reverse Current Ir
5nA
Minimum Operating Temperature
-65°C
Peak Non-Repetitive Forward Surge Current Ifsm
4A
Maximum Forward Voltage Vf
1.25V
Peak Reverse Recovery Time trr
3μs
Maximum Operating Temperature
150°C
Width
1.4 mm
Height
1mm
Length
3mm
Standards/Approvals
No
Automotive Standard
AEC-Q101
Product details
Small Signal Switching Diodes, Nexperia
Features
Supports customised high density circuit designs
Low-leakage and high-voltage types available
High switching speeds
Low capacitance
Diodes and Rectifiers
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
€ 5.21
€ 0.104 Each (In a Pack of 50) (Exc. VAT)
Standard
50
€ 5.21
€ 0.104 Each (In a Pack of 50) (Exc. VAT)
Stock information temporarily unavailable.
Standard
50
| Quantity | Unit price | Per Pack |
|---|---|---|
| 50 - 50 | € 0.104 | € 5.21 |
| 100 - 200 | € 0.094 | € 4.70 |
| 250+ | € 0.082 | € 4.12 |
