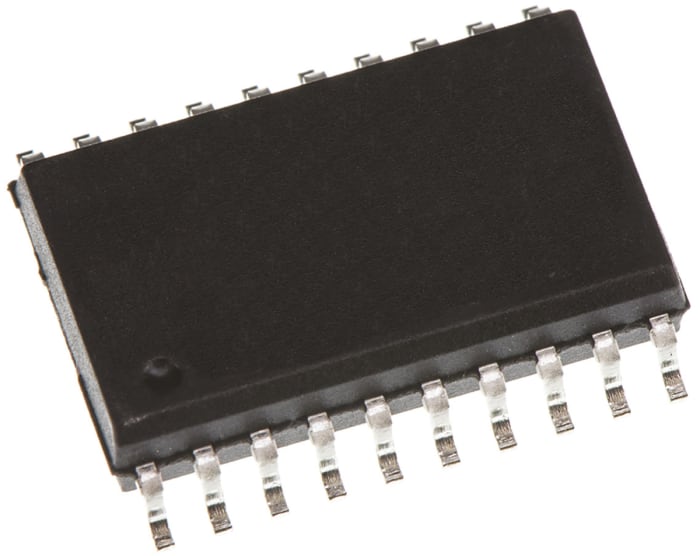

Nexperia 74HCT540D,652 Octal-Channel Buffer & Line Driver, 3-State, Inverting, 20-Pin SOIC
Technical Document
Specifications
Brand
NexperiaLogic Family
HCT
Logic Function
Buffer, Line Driver
Number of Channels per Chip
8
Input Type
Single Ended
Output Type
3 State
Polarity
Inverting
Mounting Type
Surface Mount
Package Type
SOIC
Pin Count
20
Maximum High Level Output Current
-6mA
Maximum Low Level Output Current
6mA
Maximum Propagation Delay Time @ Maximum CL
24 ns@ 4.5 V
Dimensions
13 x 7.6 x 2.45mm
Maximum Operating Supply Voltage
5.5 V
Minimum Operating Supply Voltage
4.5 V
Propagation Delay Test Condition
50pF
Country of Origin
Thailand
Product details
74HCT Family Inverters & Buffers, Nexperia
High-Speed CMOS Logic
Operating Voltage 4.5 to 5.5 V
Compatibility: Input TTL, Output CMOS
74HCT Family
Price on asking
Each (In a Tube of 38) (Exc. VAT)
Standard
38
Price on asking
Each (In a Tube of 38) (Exc. VAT)
Stock information temporarily unavailable.
Standard
38
Stock information temporarily unavailable.
