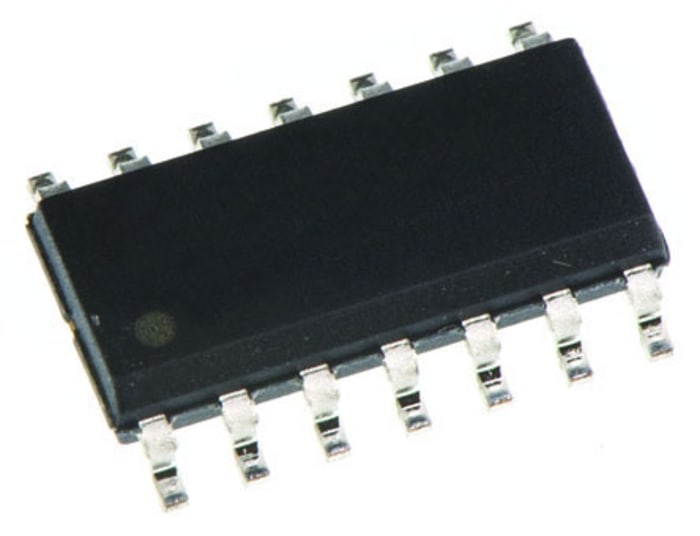

Nexperia 74HCT00D,652, Quad 2-Input NAND Logic Gate, 14-Pin SOIC
Technical Document
Specifications
Brand
NexperiaLogic Function
NAND
Mounting Type
Surface Mount
Number Of Elements
4
Number of Inputs per Gate
2
Schmitt Trigger Input
No
Package Type
SOIC
Pin Count
14
Logic Family
HCT
Maximum Operating Supply Voltage
5.5 V
Maximum High Level Output Current
-4mA
Minimum Operating Supply Voltage
4.5 V
Maximum Low Level Output Current
4mA
Dimensions
8.75 x 4 x 1.45mm
Height
1.45mm
Propagation Delay Test Condition
50pF
Minimum Operating Temperature
-40 °C
Width
4mm
Length
8.75mm
Maximum Operating Temperature
+125 °C
Country of Origin
Thailand
Product details
74HCT Family Logic Gates, Nexperia
High-Speed CMOS Logic
Operating Voltage 4.5 to 5.5 V
Compatibility: Input TTL, Output CMOS
74HCT Family
