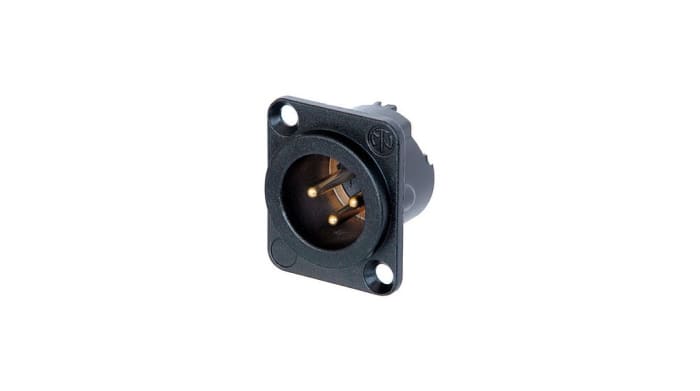

Neutrik Panel Mount XLR Connector, Male, 50 V, 3 Way, Gold over Nickel Plating
Technical Document
Specifications
Brand
NeutrikNumber Of Contacts
3
Gender
Male
Mounting Type
Panel Mount
Body Orientation
Straight
Colour
Black Metallic
Contact Plating
Gold over Nickel
Housing Material
Zinc
Termination Method
Solder
Current Rating
16A
Voltage Rating
50 V
Contact Material
Brass
Minimum Operating Temperature
-30°C
Maximum Operating Temperature
+80°C
Product details
DL Series XLR Chassis Connectors
Brought to you by Neutrik, these panel mounted XLR connectors may be mounted in either the front or rear of a panel. With a simple screw mount frame, these XLR connectors are easy to install, and feature a locking mechanism that ensures a reliable mating. Sometimes known as a cannon jack, these XLR connectors are ideal for studio and stage applications.
Warning
Not to be used as mains connectors
€ 5.44
€ 5.44 Each (Exc. VAT)
1
€ 5.44
€ 5.44 Each (Exc. VAT)
Stock information temporarily unavailable.
1
Stock information temporarily unavailable.
| Quantity | Unit price |
|---|---|
| 1 - 4 | € 5.44 |
| 5 - 9 | € 5.25 |
| 10 - 24 | € 5.09 |
| 25 - 49 | € 4.97 |
| 50+ | € 4.81 |
