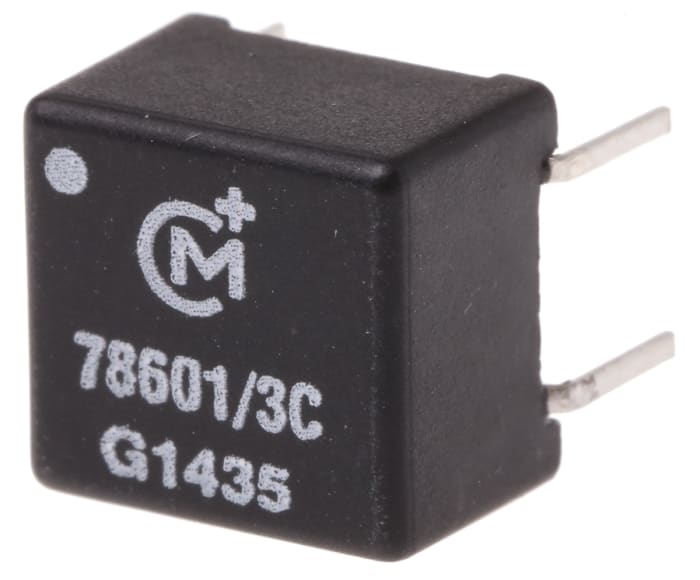

Murata Power Solutions Through Hole Pulse Transformer 1CT:1CT Turns Ratio, 200 μH Prim. Inductance, 0.24Ω Prim.
Technical Document
Specifications
Product Type
Pulse Transformer
Primary Inductance
200μH
Primary DC Resistance
0.24Ω
Turns Ratio
1CT:1CT
Mount Type
Through Hole
Leakage Inductance
3.64μH
Minimum Operating Temperature
0°C
Number of Pins
6
Maximum Operating Temperature
70°C
Depth
6.35mm
Weight
1.1g
Standards/Approvals
RoHS
Series
786
Length
9.52mm
Width
9 mm
Termination Type
Pin
Isolation Voltage
1kV
Country of Origin
China
Product details
Pulse Transformer 786 Series
General purpose pulse transformers used in coupling, thyristor/triac firing and small sized switch mode power supply applications
The standard turns ratios may be modified by connecting any two windings in series
Can also be used as a common mode choke in filtering applications
