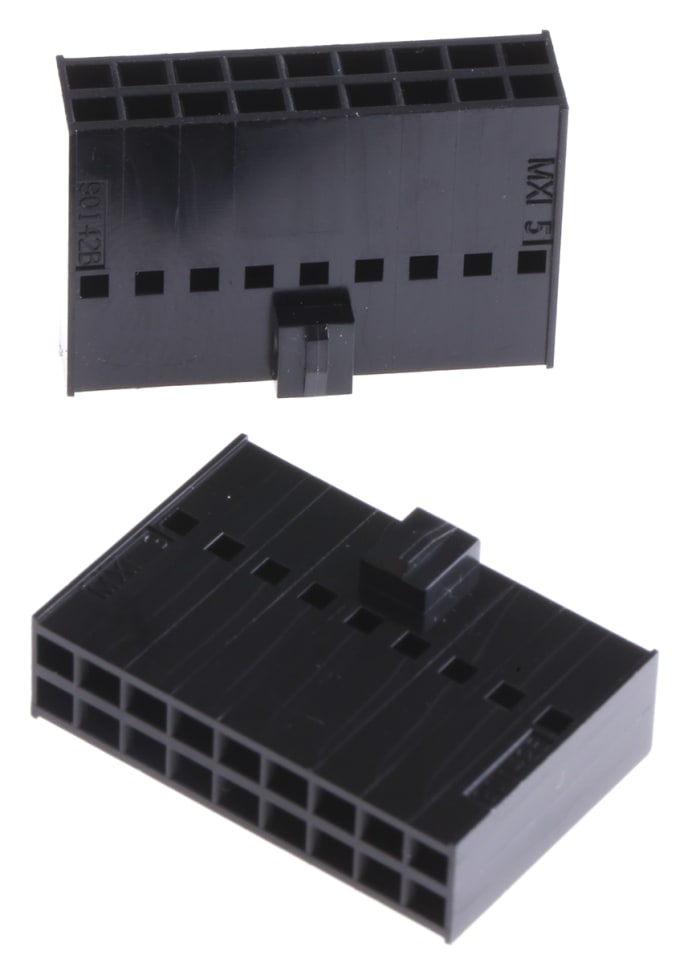

Molex, C-Grid III Female Connector Housing, 2.54mm Pitch, 18 Way, 2 Row

RS Stock No.: 670-4834Brand: MolexManufacturers Part No.: 90142-0018
brand-logo
View all in Wire Housings & Plugs

Technical Document

Specifications

Brand

Molex

Number Of Contacts

18

Number Of Rows

2

Pitch

2.54mm

Gender

Female

Mounting Type

Cable Mount

Series

C-GRID III

For Use With

C-Grid III Connector

Body Orientation

Straight

Length

22.86mm

Width

7.72mm

Housing Material

PPO

Country of Origin

Indonesia

Product details

Socket Housings, 90142 Series

Mates with 90122; 90130 and 90131 Series headers, use with 90119 Series terminals

2.54mm Molex C-Grid III Range
