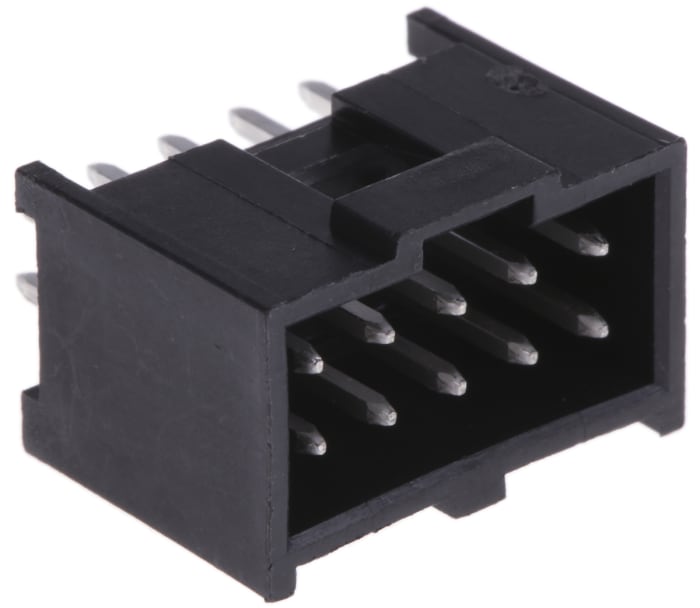

Molex C-Grid III Series Straight Through Hole PCB Header, 10 Contact(s), 2.54 mm Pitch, 2 Row, Shrouded
Technical Document
Specifications
Brand
MolexProduct Type
PCB Header
Series
C-Grid III
Pitch
2.54mm
Current
3A
Number of Contacts
10
Number of Rows
2
Orientation
Straight
Shrouded/Unshrouded
Shrouded
Connector System
Wire-to-Board
Mount Type
Through Hole
Contact Material
Brass
Contact Plating
Gold
Minimum Operating Temperature
-55°C
Row Pitch
2.54mm
Termination Type
Solder
Contact Gender
Male
Tail Pin Length
2.9mm
Maximum Operating Temperature
125°C
Standards/Approvals
No
Country of Origin
Malaysia
Product details
Straight Locking Header
Straight header suitable for use with locking housings
2.54mm Molex C-Grid III Range
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
€ 11.12
€ 2.225 Each (In a Pack of 5) (Exc. VAT)
Standard
5
€ 11.12
€ 2.225 Each (In a Pack of 5) (Exc. VAT)
Stock information temporarily unavailable.
Standard
5
| Quantity | Unit price | Per Pack |
|---|---|---|
| 5 - 95 | € 2.225 | € 11.12 |
| 100 - 370 | € 1.569 | € 7.84 |
| 375 - 1495 | € 1.504 | € 7.52 |
| 1500+ | € 1.224 | € 6.12 |
