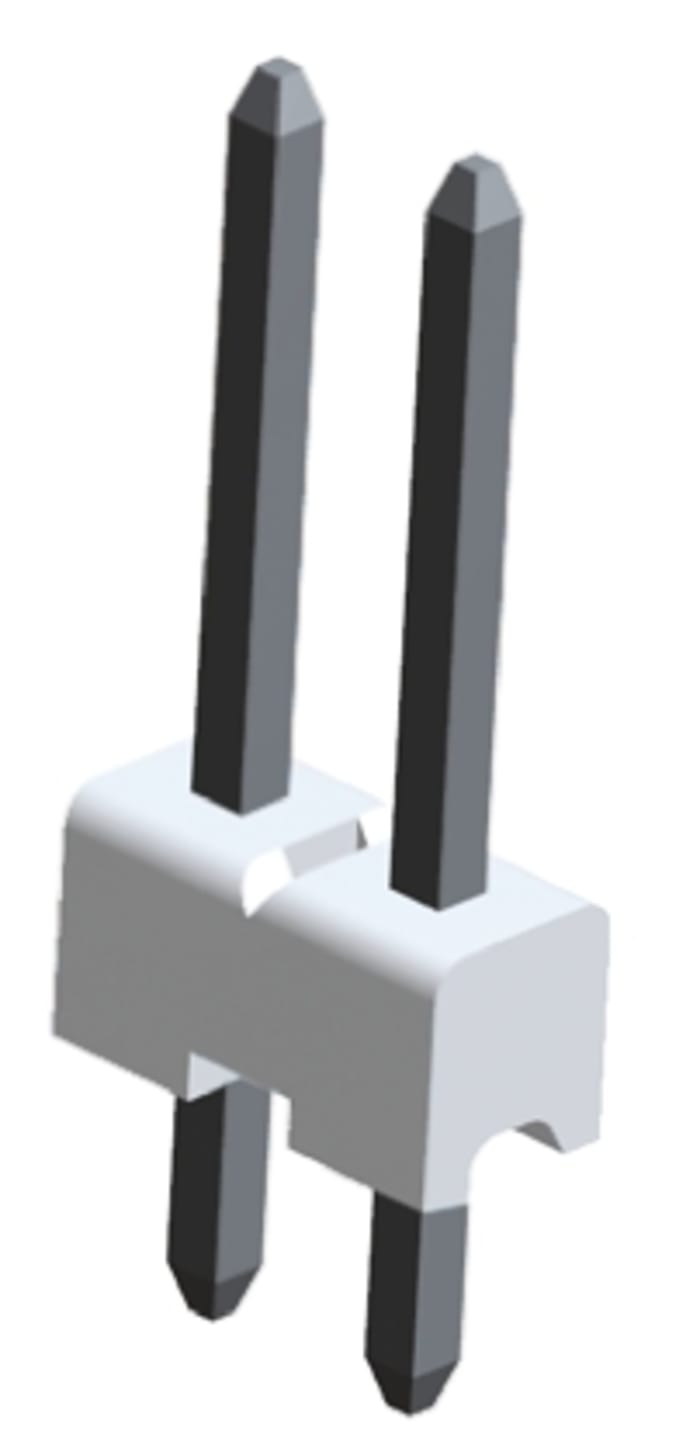

Molex KK 254 Series Straight Through Hole Pin Header, 2 Contact(s), 2.54 mm Pitch, 1 Row, Unshrouded
Technical Document
Specifications
Brand
MolexSeries
KK 254
Product Type
Pin Header
Pitch
2.54mm
Current
4A
Number of Contacts
2
Housing Material
Nylon
Number of Rows
1
Orientation
Straight
Shrouded/Unshrouded
Unshrouded
Connector System
Board-to-Board, Wire-to-Board
Mount Type
Through Hole
Contact Material
Brass
Contact Plating
Tin
Minimum Operating Temperature
-40°C
Row Pitch
2.54mm
Termination Type
Solder
Contact Gender
Male
Tail Pin Length
3.43mm
Maximum Operating Temperature
105°C
Mating Pin Length
2.54mm
Standards/Approvals
No
Voltage
250 V
Distrelec Product Id
304-37-173
Product details
Straight PCB Headers
Headers are available in single-row, unshrouded, through-hole PCB termination styles in solid and breakaway varieties. A friction lock is available for a more secure mating interface. KK 254 PCB receptacles are available in right-angle, top-entry and board-through configurations. Housings have built-in polarization features and are available in UL 94V-2 and UL 94V-0 nylons.
Approvals
UL (E29179) and CSA (LR 19980)
