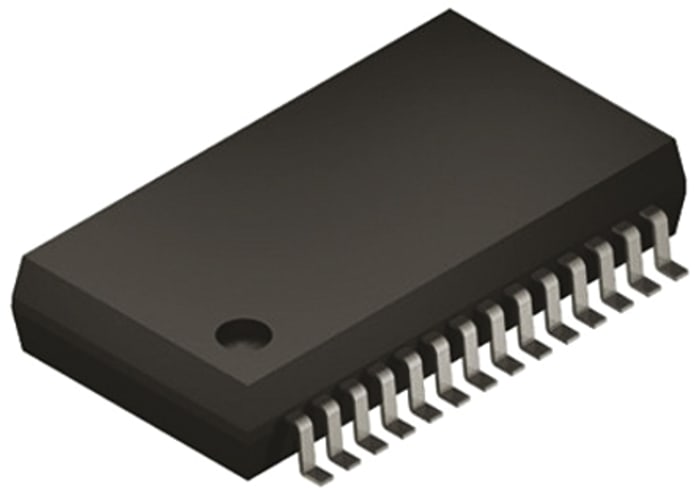

Microchip, 16bit PIC, PIC24FJ Microcontroller, 32MHz, 32 kB Flash, 28-Pin SSOP
Technical Document
Specifications
Brand
MicrochipFamily Name
PIC24FJ
Package Type
SSOP
Mounting Type
Surface Mount
Pin Count
28
Device Core
PIC
Data Bus Width
16bit
Program Memory Size
32 kB
Maximum Frequency
32MHz
RAM Size
8 kB
USB Channels
1
Number of PWM Units
5 x 16 bit
Number of SPI Channels
2
Number of USART Channels
0
Number of CAN Channels
0
Number of UART Channels
2
Number of I2C Channels
2
Typical Operating Supply Voltage
2.2 → 3.6 V
Maximum Operating Temperature
+85 °C
Length
10.5mm
Number of ADC Units
1
ADCs
9 x 10 bit
Height
1.85mm
Number of LIN Channels
2
Width
5.6mm
Dimensions
10.5 x 5.6 x 1.85mm
Pulse Width Modulation
5 x 16 bit
Maximum Number of Ethernet Channels
0
Minimum Operating Temperature
-40 °C
Instruction Set Architecture
Harvard
Program Memory Type
Flash
Number of Ethernet Channels
0
Number of PCI Channels
0
Product details
PIC24FJxxGB002/004 16-Bit Flash Microcontrollers
PIC24 Microcontrollers
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
€ 7.96
€ 3.981 Each (Supplied in a Tube) (Exc. VAT)
Production pack (Tube)
2
€ 7.96
€ 3.981 Each (Supplied in a Tube) (Exc. VAT)
Production pack (Tube)
2
Stock information temporarily unavailable.
Please check again later.
