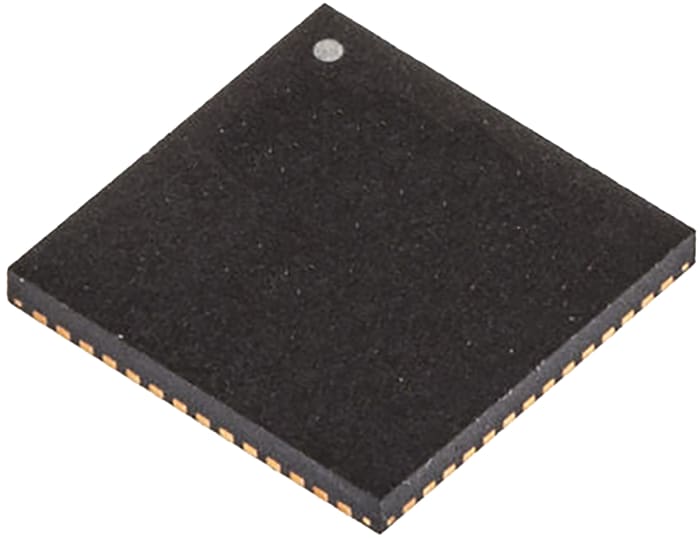

Microchip LAN9303-ABZJ, Switch IC, 3.3 V 100 Mbps, 56-Pin 3.3 V QFN
Technical Document
Specifications
Brand
MicrochipProduct Type
Switch IC
Maximum Data Rate
100Mbps
Communication Mode
Full Duplex/Half Duplex
Loopback Mode
Internal
Standard Supported
IEEE 802.3
Number of Ports
3
Mount Type
Surface
Package Type
QFN
Maximum Supply Voltage
3.3V
Pin Count
56
Minimum Operating Temperature
70°C
Maximum Operating Temperature
0°C
Standards/Approvals
No
Minimum Supply Voltage
3.3V
Width
8 mm
Height
1mm
Length
8mm
Automotive Standard
No
Product details
LAN9303 10/100 Ethernet Switches
The LAN9303 from Microchip is a 3-port 10/100 managed Ethernet Switch in a small footprint QFN package, featuring a MII/RMII/Turbo MII interface that allows network speeds of up to 200Mbps.
Features
Full-featured 3-port Switches with per-port IEEE 802.1Q VLAN support (up to 16 VLAN groups)
±8kV/15kV per-port ESD protection
IGMP v1/v2 monitoring for multicast packet filtering
Up to 200 Mbps network speed via a Turbo MII interface
Optional EEPROM or external CPU serial management support via an I2C™ interface
Virtual PHY feature simplifies software development by mimicking multiple switch ports as a single-port PHY
Integrated regulators require a single 3.3V supply
42 per-port MIB counters for efficient network management
Ethernet Communications - Microchip
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
€ 6.80
€ 6.80 Each (Exc. VAT)
Standard
1
€ 6.80
€ 6.80 Each (Exc. VAT)
Stock information temporarily unavailable.
Standard
1
| Quantity | Unit price |
|---|---|
| 1 - 24 | € 6.80 |
| 25 - 99 | € 6.61 |
| 100+ | € 6.44 |
