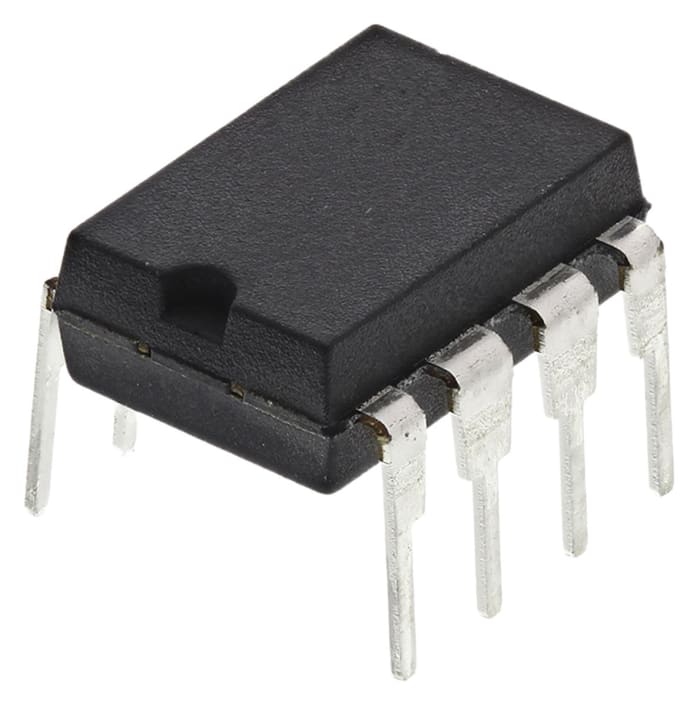

Microchip 24LC02B-I/P, 2 kB Serial EEPROM, 900 ns 8-Pin PDIP I2C
Technical Document
Specifications
Brand
MicrochipMemory Size
2kB
Product Type
Serial EEPROM
Interface Type
I2C
Package Type
PDIP
Mount Type
Through Hole
Pin Count
8
Maximum Clock Frequency
400kHz
Organisation
256 x 8 bit
Minimum Supply Voltage
2.5V
Maximum Supply Voltage
5.5V
Number of Bits per Word
8
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
85°C
Width
6.35 mm
Height
3.3mm
Length
9.4mm
Standards/Approvals
No
Data Retention
200year
Supply Current
3mA
Maximum Random Access Time
900ns
Automotive Standard
AEC-Q100
Product details
24AA02/24LC02B I²C™ Serial EEPROM
Microchip’s 24AA02/24LC02B family of devices are 2 Kbit I²C™ Serial EEPROMs available in a variety of package, temperature and power supply variants.
Features
Single Supply with Operation down to 1.7V for 24AA02 Devices, 2.5V for 24LC02B Devices
Low-Power CMOS Technology: Read current 1 mA (maximum), Standby current 1 μA (maximum)
2-Wire Serial Interface, I2C™ Compatible
Schmitt Trigger inputs for Noise Suppression
Output Slope Control to eliminate Ground Bounce
100 kHz and 400 kHz Clock Compatibility
Page Write Time 3 ms (typical)
Self-Timed Erase/Write Cycle
8-Byte Page Write Buffer
Hardware Write-Protect
ESD Protection >4,000V
More than 1 Million Erase/Write Cycles
Data Retention >200 Years
EEPROM Serial Access - Microchip
Stock information temporarily unavailable.
€ 7.86
€ 0.393 Each (In a Pack of 20) (Exc. VAT)
20
€ 7.86
€ 0.393 Each (In a Pack of 20) (Exc. VAT)
Stock information temporarily unavailable.
20
| Quantity | Unit price | Per Pack |
|---|---|---|
| 20 - 20 | € 0.393 | € 7.86 |
| 40 - 80 | € 0.383 | € 7.65 |
| 100+ | € 0.372 | € 7.45 |
